5V 4 Channel Relay Board Module Active Low - Terminal Blocks

SKU 486849

MPN: 486849

Availability:
Out of stock
Sold out
Original price £7.00 - Original price £7.00
Original price
£7.00
£7.00 - £7.00
Current price £7.00

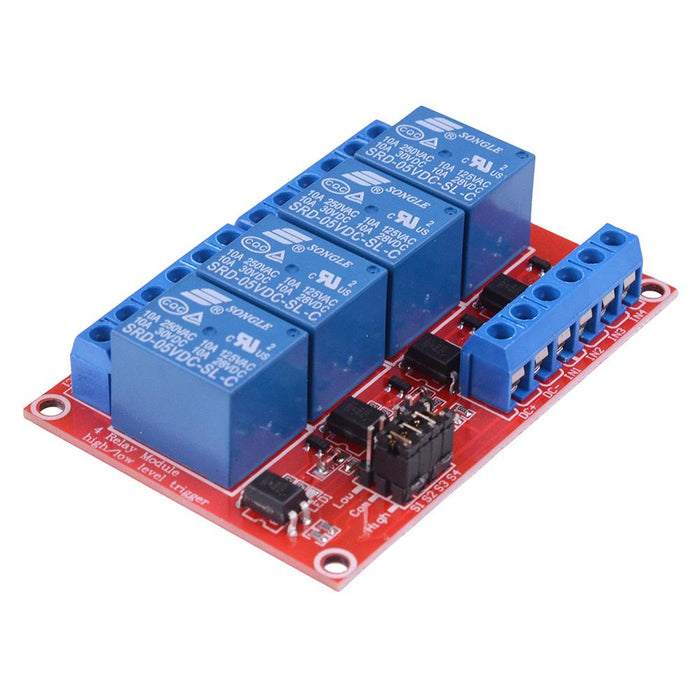

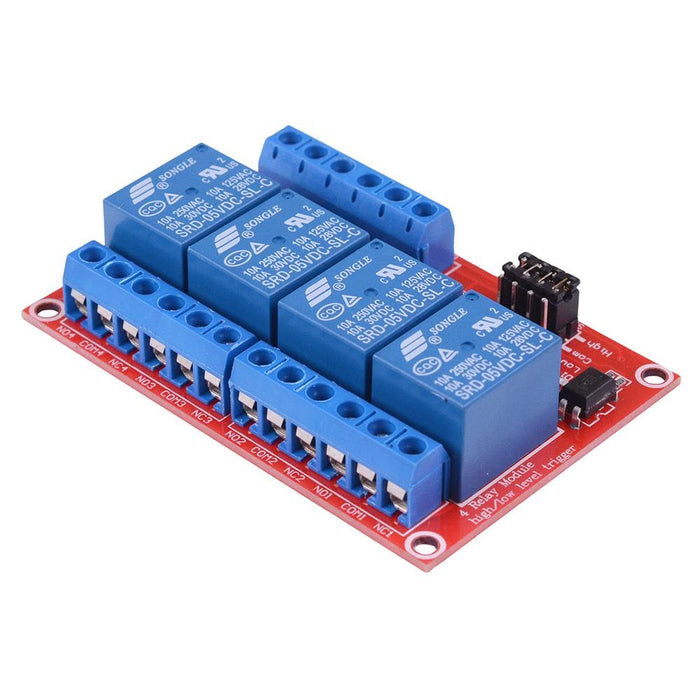

4 channel active low relay board with 5V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1.5V to switch the inputs ON. The modules can be controlled directly by a microcontroller and are suitable for 5V applications.

  • 4 Channel
  • Maximum switching voltage: 250VAC / 30VDC
  • Maximum switching current: 10A
  • Module operating voltage: 12V
  • Each relay features an LED indicator
  • Dimensions: 73 x 50 x 18.5mm (Length x Width x Height)
  • Specification
    Back Order Lead Time 30 Days
    Coil Voltage 5VDC
    Number of Channels 1
    Terminal Type Terminal Block
