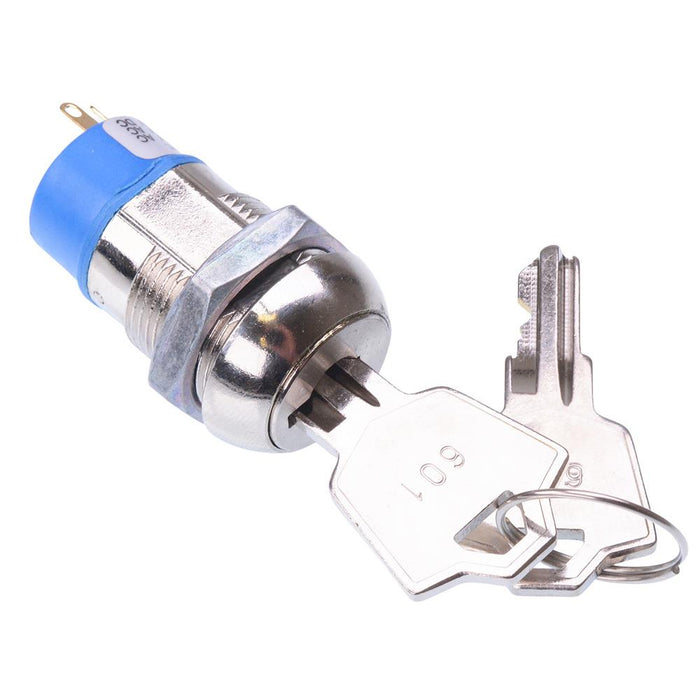

(On)-Off-(On) Momentary 3 Way 19mm Key Switch SPDT 4A APEM JD7510E-601

SKU 487452

MPN: JD7510E-601

100 in stock, ready to be shipped
Original price £9.14 - Original price £9.14
Original price
£9.14 Inc VAT
£9.14 - £9.14
Current price £9.14 Inc VAT
The IRR8Z262L0S is a round sealed momentary push button switch with a 16mm bushing and DPDT contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

  • Button colour: red
  • LED colour: red
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Panel cut-out: 16.2mm
  • Contacts: DPDT
  • Terminals:quick connect / solder lug contacts
  • Contact rating: 5A 250VAC
  • Protection rating: IP67
  • Maximum panel thickness: 3mm
  • Dimensions: 19.8 x 31.65mm (diameter x height)
  • Specification
    Actuation Momentary
    Colour Nickel Plated
    Contact configuration SP3T
    Contact material Gold Plated Copper Alloy
    Contact rating 4A 125VAC / 28VDC, 2A 250VAC
    Current rating 4A @ 125VAC / 28VDC
    Electrical life 6000 Cycles
    Key index angle 45°
    Key withdrawal position 1
    Mounting style Panel Mount
    Number of positions 3
    Operating temperature -30°C to +85°C
    Panel cut out 19mm
    Product series JD
    Protection level Gold Plated Copper Alloy
    Switch operation (On)-Off-(On)
    Terminal type Solder
    Voltage rating 250VAC
