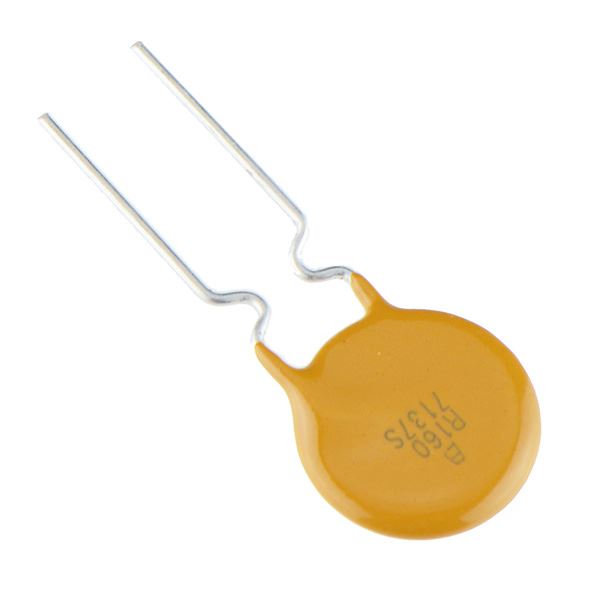

0.25A PTC Resettable Fuse 60V MF-R025-0-99
by Bourns
SKU 551910
MPN: MF-R025-0-99
Availability:
Only 3 left!
Original price
£0.60
-
Original price
£0.60
Original price
£0.60
Inc VAT
£0.60
-
£0.60
Current price
£0.60
Inc VAT
Bourns resettable fuse suitable for protecting against over-current for a wide range of applications where a low voltage power supply is used.
Radial Leads Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements Maximum voltage: 60V Hold current: 0.25A Trip current: 0.5A Dimensions: 7.4 x 12.7 x 3.1mm (Width x Height x Depth) Operating temperature: -40°C to +85°C Bourns MF-R series
Specification
| Back order lead time | 5 Days |
| Current rating | 40A |
| Depth | 3.1mm |
| Height | 12.7mm |
| Operating temperature | 40°C to +85°C |
| Pitch | 5.1mm |
| Trip current | 0.5A |
| Trip time | 2.5s |
| Voltage rating | 60V |
| Width | 7.4mm |
