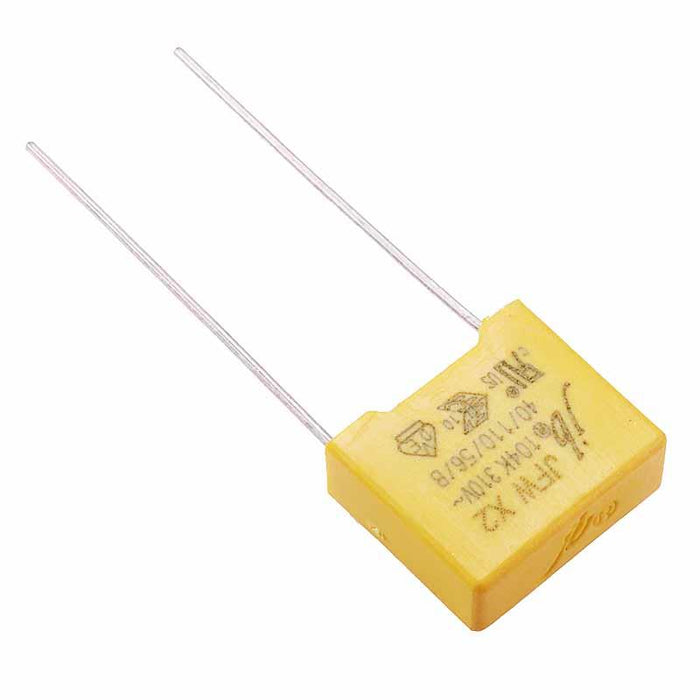

0.47uF 310VAC X2 Metallised Polypropylene Film Capacitor 15mm Pitch
SKU 482887
MPN: JFW-X2
Availability:
2855 in stock
Original price
£0.36
-
Original price
£0.36
Original price
£0.36
Inc VAT
£0.36
-
£0.36
Current price
£0.36
Inc VAT
470nF 310VAC metallised polypropylene suppression capacitors manufactured from a non-inductive plastic case sealed with epoxy resin. The capacitors are used in across-the-line, interfernece supression circuits.
±10% tolerance 15mm pitch Class X2 Dimensions: 18 x 14.5 x 8.5mm (Length x Height x Thickness)
Specification
| Back order lead time | 45 Days |
| Capacitance | 470nF |
| Height | 14.5mm |
| Length | 18mm |
| Material | Polypropylene |
| Moq | 5 |
| Mounting style | Through Hole |
| Operating temperature | -40°C to +110°C |
| Pitch | 15mm |
| Thickness | 8.5mm |
| Tolerance | ±10% |
| Voltage rating | 310VAC |
