0.75mm² 2-Core Flat Twin Thin Wall Cable 24/0.2mm 100M

SKU 490625

MPN: TW2C0.75BRB100

Availability:
Only 5 left!
Original price £47.62 - Original price £47.62
Original price
£47.62
£47.62 - £47.62
Current price £47.62

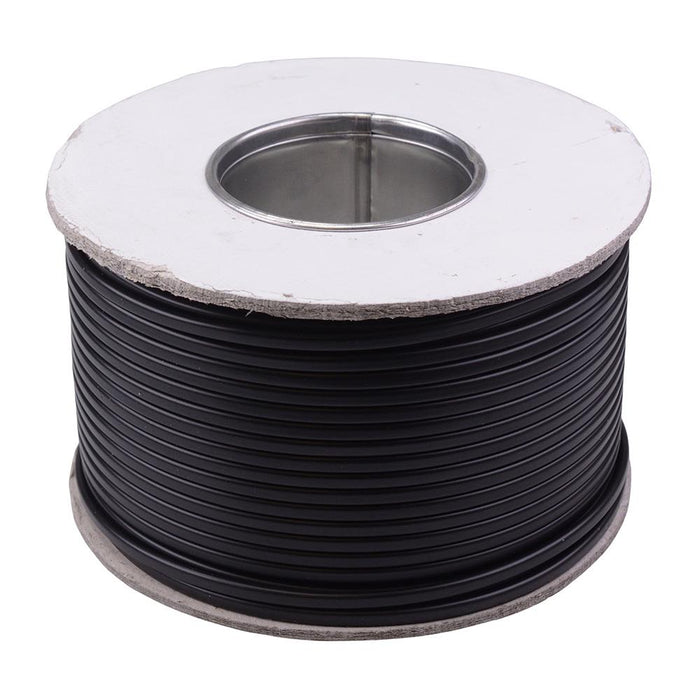

2 core 0.75mm² flat thin wall single core cable featuring 24/0.2mm stranding and a copper conductor. The cable is insulated by lightweight PVC with an outer sheath, providing excellent weight savings over standard PVC cable. The insulation provides protection against moisture, oil, petrol, diesel and other corossive substances. The narrow insulation and high current capacity makes it suitable for a wide range of automotive, marine and other low voltage applications.

  • Reel size: 100m
  • Stranding: 24/0.2mm
  • Insulation material: thin wall PVC
  • Conductor material: copper
  • Outer dimensions: 3.1 x 4.9mm
  • Conductor cross section: 0.75mm²
  • Maximum current: 14A
  • Voltage rating: 60VDC
  • Operating temperature: -40°C to 105°C
  • Approvals: ISO6722-1, BS EN 60228:2005
  • Specification
    Back Order Lead Time 7 Days
    Colour Red / Black
    Conductor Cross Section 0.75mm²
    Conductor Material Copper
    Conductor Stranding 24/0.2mm
    Current Rating 14A
    Insulation Material PVC
    Length 100M
    MOQ 1
    Number of Cores 2
    Operating Temperature -40°C to 105°C
    Overall Diameter 3.1 x 4.9mm
    Voltage Rating 60VDC
