0r22 25W Aluminium Wirewound Resistor 5%

SKU 483562


199 in stock
Original price £2.19 - Original price £2.19
Original price
£2.19 Inc VAT
£2.19 - £2.19
Current price £2.19 Inc VAT

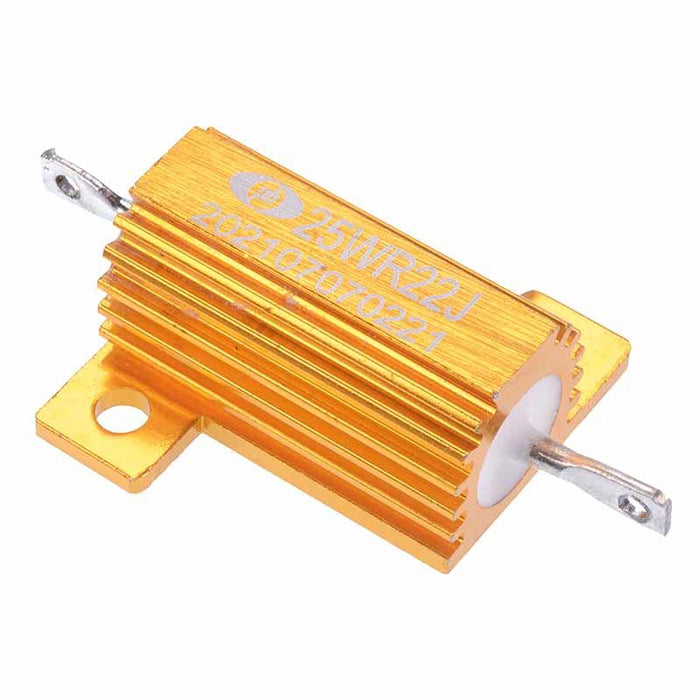

0r22 25W aluminium clad resistors featuring a small package designed for direct heatsink mounting. The resistors are suitable for a wide range of applications including power supplies and audio.

  • High power to volume
  • Wound to maximise high pulse capability
  • 200V maximum working voltage
  • 5% tolerance
  • Solder terminations
  • Features 2 mounting holes
  • Specification
    Back order lead time 45 Days
    Dimensions 27 x 27 x 13mm (Length x Width x Height)
    Maximum operating voltage 200V
    Mpn 483562
    Packaging Bulk
    Power rating 25W
    Resistance 0.22Ω
    Temperature coefficient ±300ppm/°C
    Termination Solder Lug
    Tolerance ±5%
