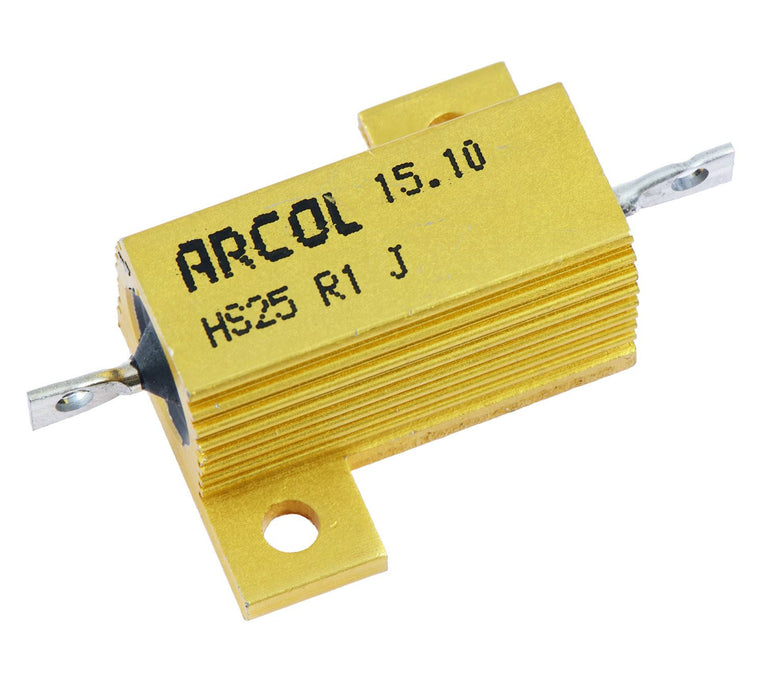

0R47 Arcol 25W Aluminium Clad Resistor HS25

by Arcol
SKU 399024

MPN:

Availability:
18 in stock
Original price £2.03 - Original price £2.03
Original price
£2.03
£2.03 - £2.03
Current price £2.03
Arcol 25W aluminium clad resistors suitable for a wide range of applications where a high power dissipation is required. The resistors have a small package and are designed for direct heatsink mounting.

  • High power to volume
  • Wound to maximise high pulse capability
  • 5% tolerance
  • Solder terminations
  • Features 2 mounting holes
  • Arcol HS series
  • Specification
    Back Order Lead Time 10 Days
    Dimensions 51.0 x 28.0 x 14.6mm (Length x Width x Height)
    Heatsink Area 535cm²
    Limiting Element Voltage 550V
    mpn HS25 0R47 J
    Operating Temperature -55°C to +200°C
    Packaging Bulk
    Power Rating 25W
    Resistance 0.47Ω
    Temperature Coefficient ±100ppm/°C
    Termination Solder Lug
    Tolerance ±5%
