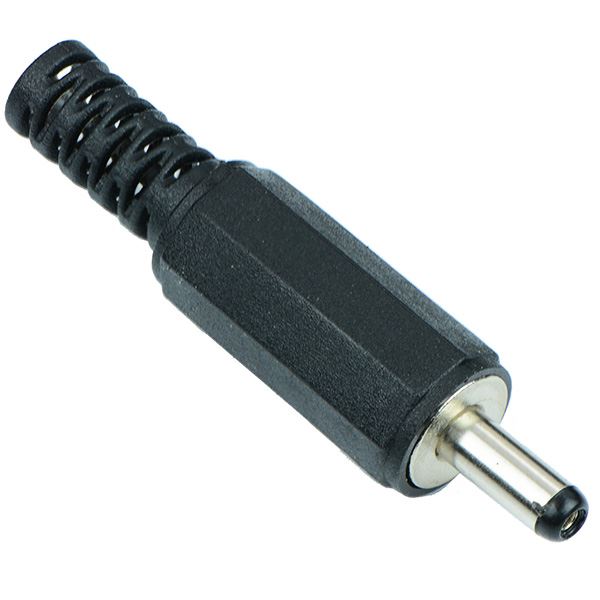

1.1 x 3.8mm DC Plug Connector
SKU 550918
MPN: 550918
Availability:
265 in stock
Original price
£0.32
-
Original price
£0.32
Original price
£0.32
£0.32
£0.32
-
£0.32
Current price
£0.32
DC connector featuring insulation manufactured from PA66. Easy to wire, suitable to replace exisiting power plugs.
Size: 1.1 x 3.8mm (inner x outer diameter) Solder terminals Contact material: Brass Rating: 1A 30VDC Barrel length: 9mm Features cable strain relief
Specification
| Back Order Lead Time | 150 |
| Barrel Length | 9mm |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Contact Rating | 1A 30VDC |
| Housing Material | PBT |
| Inner Diameter | 1.1mm |
| MOQ | 5 |
| Mounting Type | Wire |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +70°C |
| Outer Diameter | 3.8mm |
| Termination Method | Solder |
