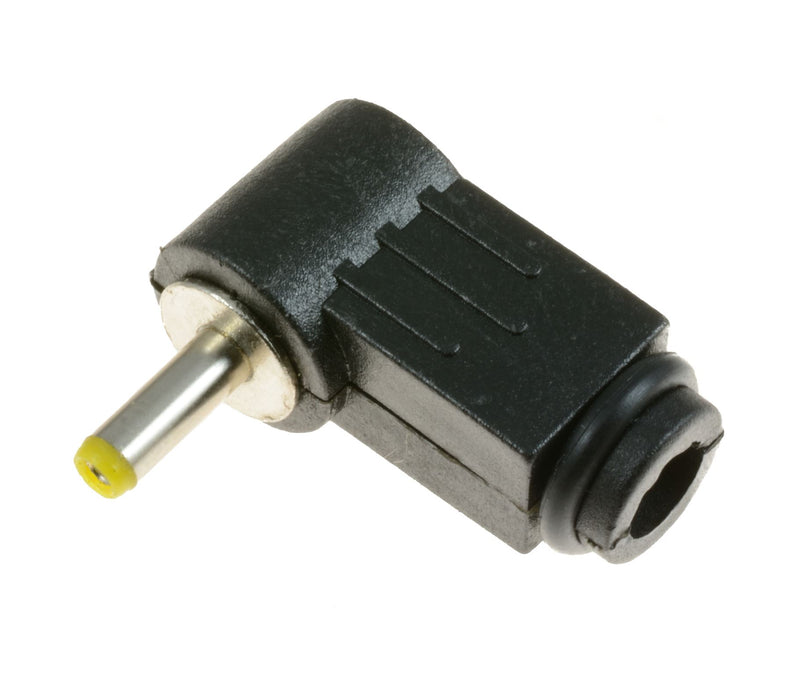

1.1mm x 3.0mm Right Angle Male DC Power Plug Connector
SKU 210028
MPN: 210028
Availability:
205 in stock
Original price
£0.75
-
Original price
£0.75
Original price
£0.75
£0.75
£0.75
-
£0.75
Current price
£0.75
DC power plugs suitable for a wide range of applications including repairing and replacing plugs found on mains adaptors.
Moulded strain relief Strong plastic barrel Solder termination 1.1mm x 3.0mm tip diameter Barrel length: 8.5mm
Specification
| Back Order Lead Time | 45 Days |
| Barrel Length | 8.5mm |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Contact Rating | 1A 30VDC |
| Housing Material | PBT |
| Inner Diameter | 1.1mm |
| Mounting Type | Wire |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +70°C |
| Outer Diameter | 3.0mm |
| Termination Method | Solder |
