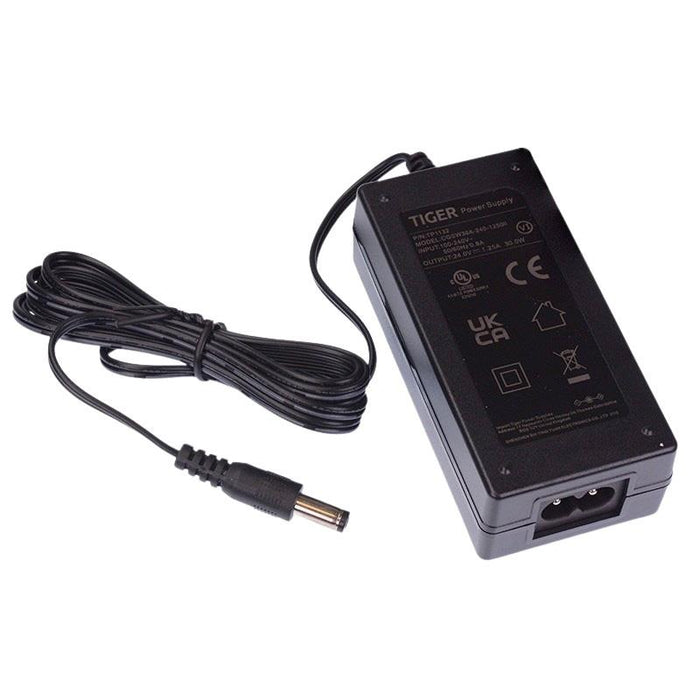

1.25A 24VDC Desktop Power Supply 30W
SKU 484429
MPN: TP1132
Availability:
13 in stock
Original price
£6.38
-
Original price
£6.38
Original price
£6.38
£6.38
£6.38
-
£6.38
Current price
£6.38
1.25A 24VDC desktop power supply featuring over voltage, short circuit and over current protection. The power supply features a 100-240VAC input voltage and is approved to the latest safety standards.
Constant voltage design with over voltage, short circuit & over current protections Universal 100-240vac input voltage Class II design 2 Pin C8 input Level VI efficiency Approved to latest 62368-1 world safety standards including CE & UL Meets new UKCA UK safety legislation DC lead length: 1.5 metres 2.1 x 5.5 x 12mm DC plug Dimensions: 92 x 46 x 29mm
Specification
| Ambient Temperature | -0°C to 40°C |
| Back Order Lead Time | 5 |
| Input Frequency | 47-63Hz |
| Input Voltage | 100-240VAC |
| MOQ | 1 |
| Output Connector | 2.1 x 5.5 x 12mm |
| Output Current | 1.25A |
| Output Voltage | 24VDC |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Plug Type | 2-Pin C8 |
| Power Rating | 30W |
| Short Circuit Protection | Yes |
