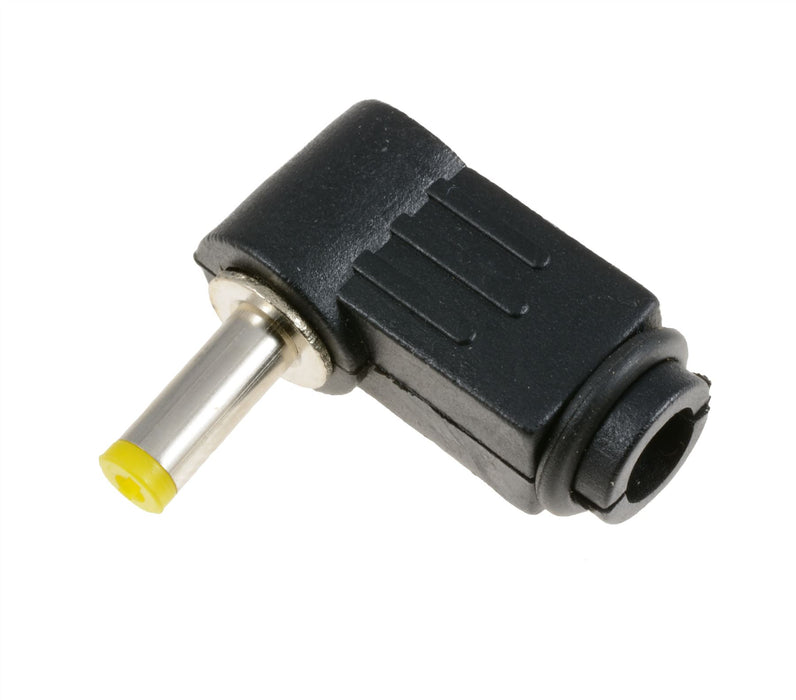

1.7mm x 4.8mm Right Angle Male DC Power Plug Connector
SKU 210020
MPN: 210020
Availability:
1156 in stock
Original price
£0.47
-
Original price
£0.47
Original price
£0.47
£0.47
£0.47
-
£0.47
Current price
£0.47
DC power plugs suitable for a wide range of applications including repairing and replacing plugs found on mains adaptors.
Moulded strain relief Strong plastic barrel Solder termination 1.7mm x 4.8mm tip diameter Barrel length: 11mm
Specification
| Back Order Lead Time | 45 |
| Barrel Length | 11mm |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Contact Rating | 1A 30VDC |
| Housing Material | PBT |
| Inner Diameter | 1.7mm |
| MOQ | 5 |
| Mounting Type | Wire |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +70°C |
| Outer Diameter | 4.8mm |
| Termination Method | Solder |
