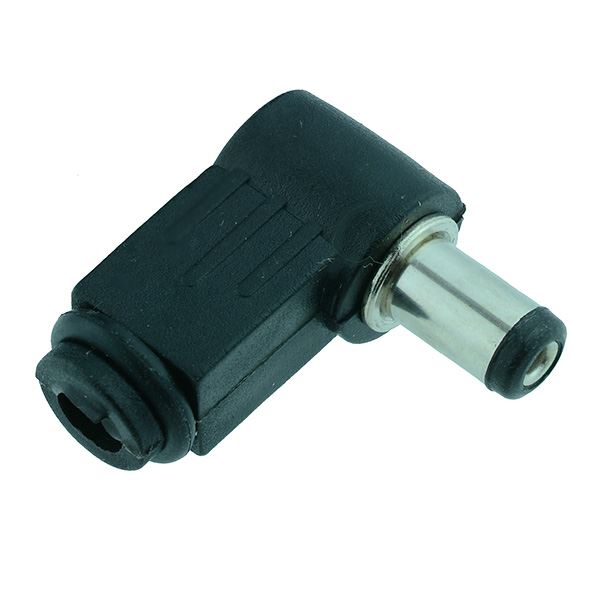

1.7mm x 5.5mm Right Angle Male DC Power Plug Connector

SKU 480312

MPN: 480312

Availability:
393 in stock
Original price £0.59 - Original price £0.59
Original price
£0.59 Inc VAT
£0.59 - £0.59
Current price £0.59 Inc VAT
1.7mm x 5.5mm DC power plugs suitable for a wide range of applications including repairing and replacing plugs found on mains adaptors.

  • Strong plastic barrel
  • Solder termination
  • 1.7 x 5.5mm tip diameter
  • 9mm barrel length
  • Specification
    Back order lead time 45 Days
    Barrel length 9mm
    Colour Black
    Contact material Nickel Plated Brass
    Contact rating 1A 30VDC
    Housing material PBT
    Inner diameter 1.7mm
    Mounting type Wire
    Number of pins 2
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Termination method Solder
