10-Way 3.81mm PCB Terminal Block Green 10A 150V

SKU 488078

MPN: AKZ601/10-3,81-V-GREEN

Availability:
90 in stock
Original price £1.25 - Original price £1.25
Original price
£1.25 Inc VAT
£1.25 - £1.25
Current price £1.25 Inc VAT

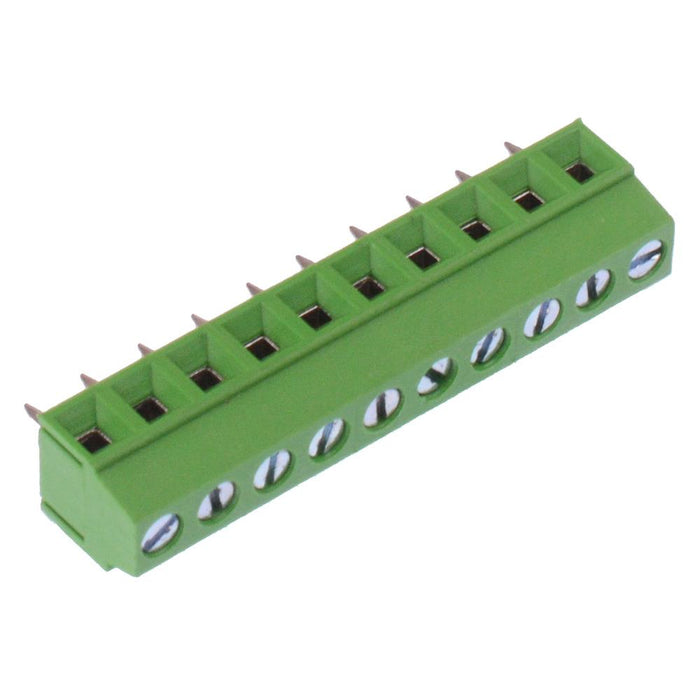

10 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 3.81mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 10A, making them suitable for a wide range of PCB applications.

  • 10 pole
  • 3.81mm pitch
  • Wire entry parallel to the board
  • Material: PA66
  • Rating: 10A 150V
  • Wire size: 28-16AWG
  • Specification
    Back order lead time 10 Days
    Colour Green
    Contact material Brass
    Current rating 10A
    Housing material PA66
    Mounting type PCB Mount
    Number of ways 10
    Operating temperature -40°C to +105°C
    Pitch 3.81mm
    Termination method Screw
    Voltage rating 150VAC
    Wire range 28-16AWG
