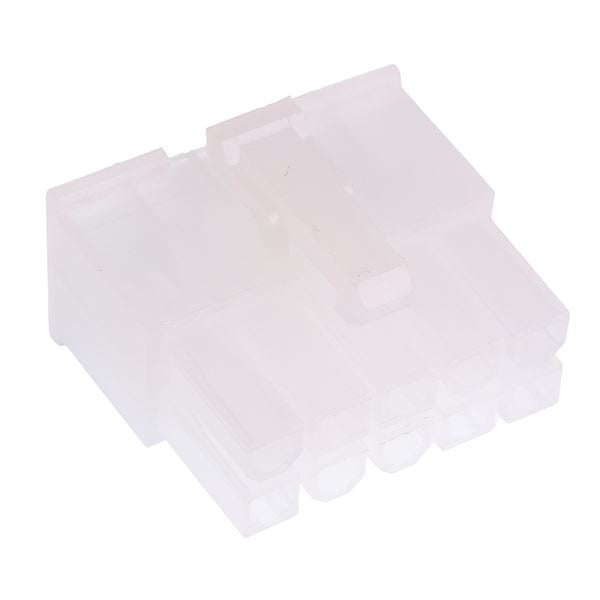

10 Way 4.2mm Mini-Fit Female Housing Connector
SKU 484695
MPN: 484695
Availability:
406 in stock
Original price
£0.29
-
Original price
£0.29
Original price
£0.29
£0.29
-
£0.29
Current price
£0.29
Double row 10 way receptacle featuring 4.2mm pitch suitable for mating with a male housing. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex Mini-Fit.
4.2mm pitch Nylon 66 housing Rated Current: 9A Rated Voltage: 300V Wire range: 16-28AWG
Specification
Back Order Lead Time | 45 Days |
Contact Material | Tin Plated Brass |
Current Rating | 9A |
Housing Material | PA66 |
MOQ | 5 |
Mounting Type | Cable Mount |
Number of Ways | 10 |
Operating Temperature | -25°C to +85°C |
Pitch | 4.2mm |
Termination Method | Crimp |
Voltage Rating | 300VAC |
Wire Range | 28-16AWG |
