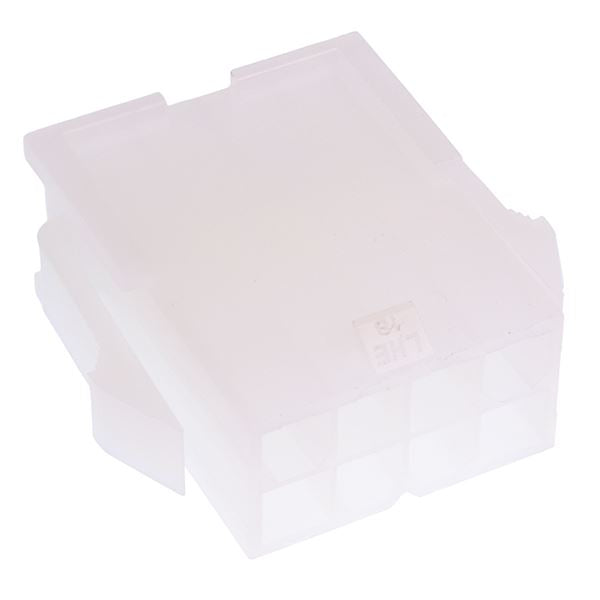

10 Way 4.2mm Mini-Fit Male Housing Connector

SKU 484702

MPN: 484702

Availability:
425 in stock
Original price £0.32 - Original price £0.32
Original price
£0.32
£0.32 - £0.32
Current price £0.32
Double row 10 way male housing featuring 4.2mm pitch suitable for mating with a female receptacle. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex Mini-Fit.

  • 4.2mm pitch
  • Nylon 66 housing
  • Rated Current: 9A
  • Rated Voltage: 300V
  • Wire range: 16-28AWG
  • Specification
    Back Order Lead Time 45 Days
    Contact Material Tin Plated Brass
    Current Rating 9A
    Housing Material PA66
    MOQ 5
    Mounting Type Cable Mount
    Number of Ways 10
    Operating Temperature -25°C to +85°C
    Pitch 4.2mm
    Termination Method Crimp
    Voltage Rating 300VAC
    Wire Range 28-16AWG
