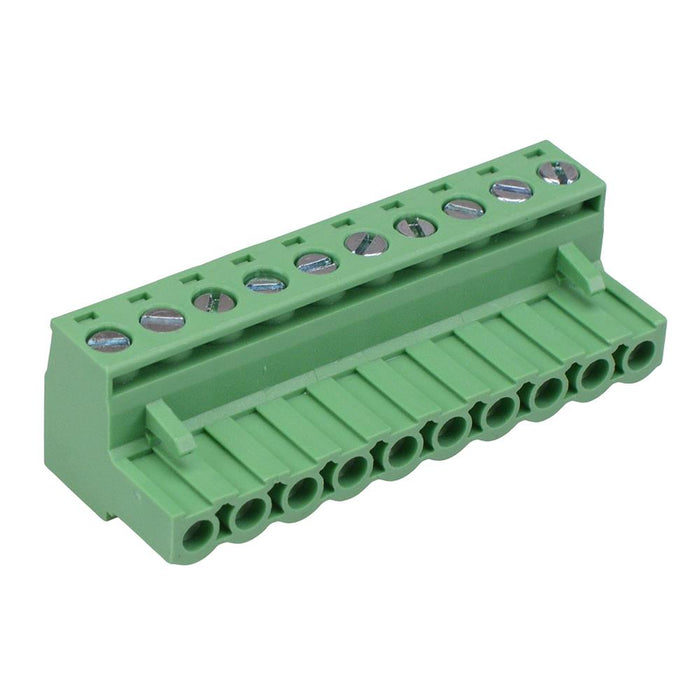

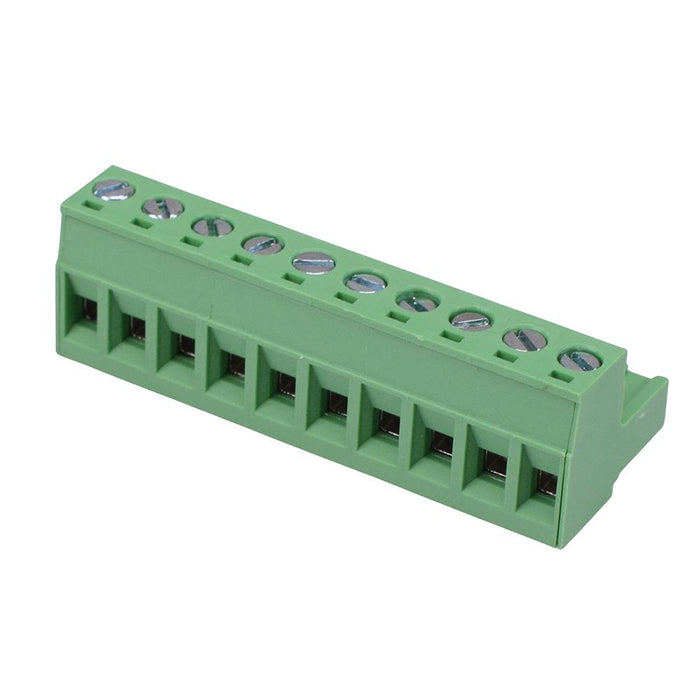

10-Way 5.00mm Right Angle Pluggable Terminal Block 15A 300V
by Degson
SKU 488751
MPN: 2EDGK-5.00-10P14
Availability:
94 in stock
Original price
£1.32
-
Original price
£1.32
Original price
£1.32
£1.39
£1.39
-
£1.39
Current price
£1.39
10 pole pluggable terminal block by Degson, featuring a 5.00mm pitch and right angle orientation. The terminal blocks are rated up to 15A, suitable for mating with 5mm open and closed style PCB headers.
10 pole 5.00mm pitch Right angle Material: PA66 Rating: 15A 300V Wire size: 28-12AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 10 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 28-12AWG |
