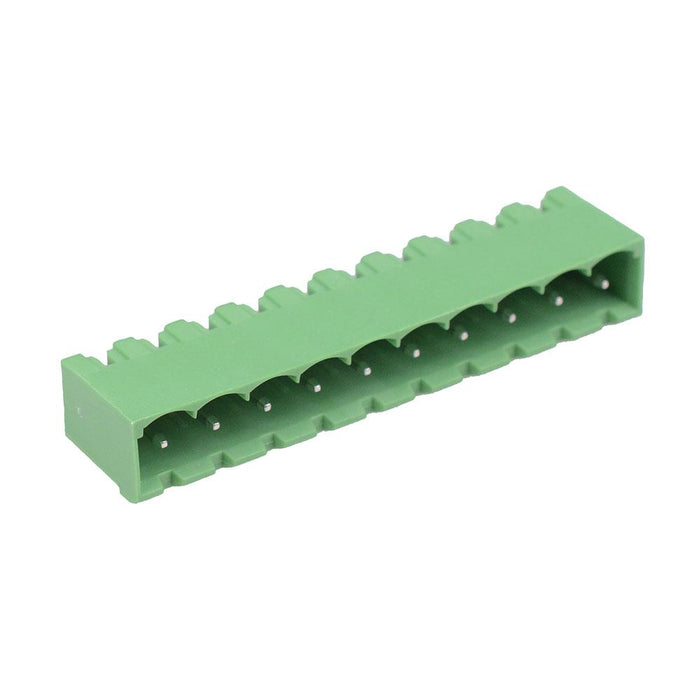

10-Way 5.00mm Vertical PCB Header Closed Ends 15A 300V
by Degson
SKU 488772
MPN: 2EDGVC-5.00-10P14
Availability:
100 in stock
Original price
£0.63
-
Original price
£0.63
Original price
£0.63
£0.66
£0.66
-
£0.66
Current price
£0.66
10 pole PCB header manufactured by Degson, featuring a 5.00mm pitch and vertical orientation. The headers are rated up to 15A, making them suitable for mating with 5mm pluggable terminal blocks.
10 pole 5.00mm pitch Vertical orientation Closed ends Material: PA66 PCB hole diameter: 1.5mm Rating: 15A 300V
Specification
| Back Order Lead Time | 150 Days |
| Current Rating | 15A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 10 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
