10 Way Waterproof Prewired Standard Blade Fuse Box R3-100-11-3110
by SCI
SKU 491344
MPN: R3-100-11-3110
Availability:
Out of stock
Sold out
Original price
£33.78
-
Original price
£33.78
Original price
£33.78
£35.47
£35.47
-
£35.47
Current price
£35.47

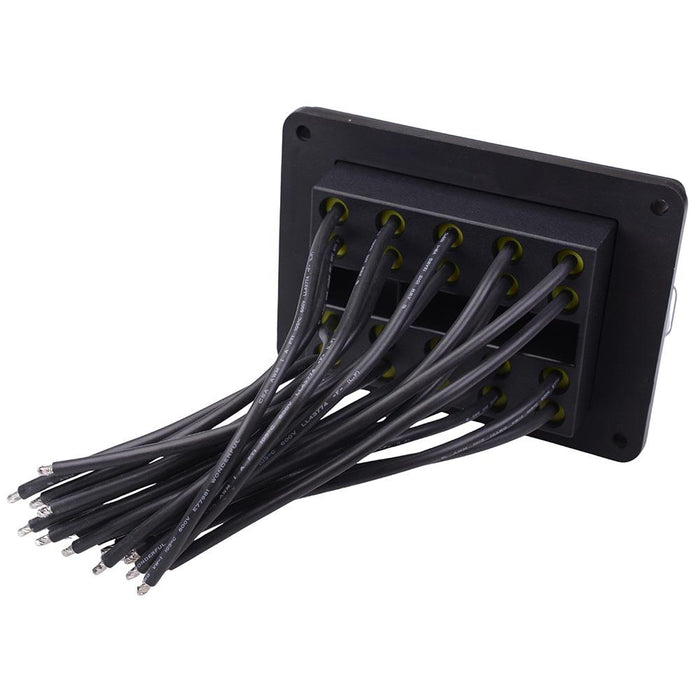

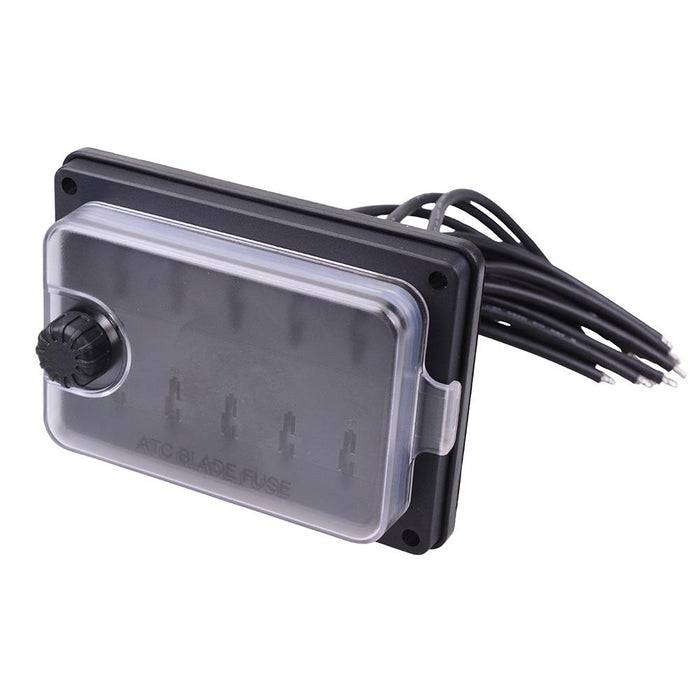

The R3-100-11-3110 is a 10 way standard blade fuse holder, featuring IP56 protection rating and 150mm tail leads. The fuse box comes complete with a clear lid and is designed for mounting to a panel. The box is designed for a wide range of automotive and marine applications due to its 32VDC rating.
10 way ATO/ATC blade fuses 150mm 12AWG tail leads Voltage rating: 32VDC Current rating: 20A max per circuit Panel cut-out: 89 x 64mm Mounting holes pitch: 109.7 x 75.5mm 6mm diameter mounting holes Protection rating: IP56
Specification
| Back Order Lead Time | 150 Days |
| Current Rating | 20A |
| Fuse Size | Standard Blade |
| MOQ | 1 |
| Mounting Style | Chassis Mount |
| Number of Fuses | 10 |
| Protection Level | IP56 |
| Voltage Rating | 32VDC |
| Wire Size | 12AWG |
