100112 APEM 2 Axis 4 Position Fingertip Joystick 10A 30VDC
by APEM
SKU 488552
MPN: 2V17F1100
Availability:
50 in stock
Original price
£23.36
-
Original price
£23.36
Original price
£23.36
Inc VAT
£23.36
-
£23.36
Current price
£23.36
Inc VAT

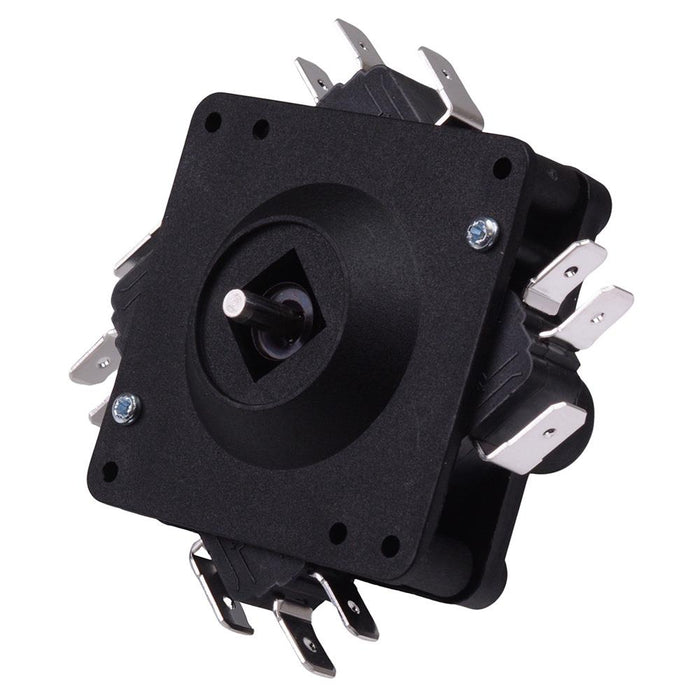

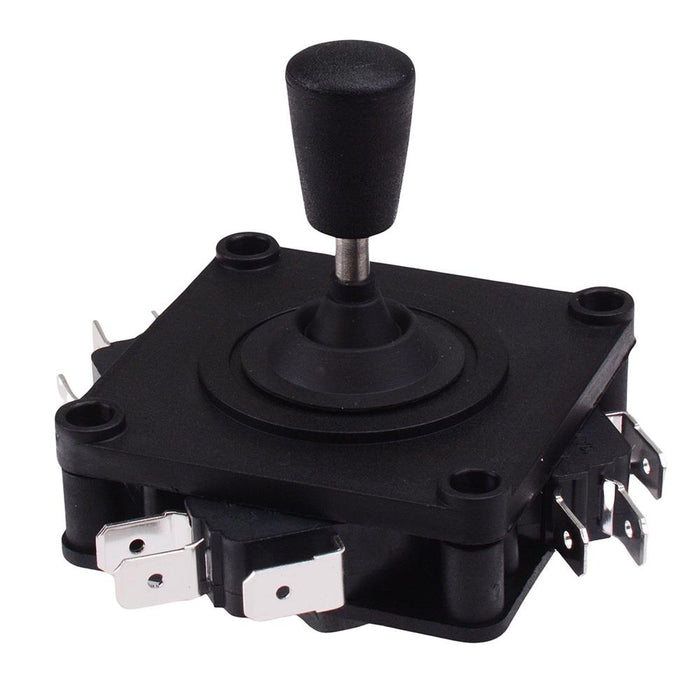

The 2V17F1100 is a high quality 4 position joystick with 2 axis, manufactured by APEM. The 1000 series is a versatile low-cost joystick ideal for light to medium duty envirnments where proportional control is not a necessity. The joystick is single pole based on V3 microswitches with a 10A 30VDC rating and is suitable for a wide range of applications.
2 axis Sealing: IP67 above panel Rating: 10A 30VDC 4 point screw mounting Conical handle Screw mount boot Mounting hole pitch: 45.5 x 45.5mm Dimensions: 53.5 x 53.5 x 67.5mm (length x width x height)
Specification
| Back order lead time | 10 Days |
| Handle | Conical |
| Joystick travel | ±12° |
| Mechanical life | 5,000,000 Cycles |
| Number of axis | 2 |
| Operating temperature | -20°C to +50°C |
| Protection level | IP67 |
| Rating | 10A 30VDC |
| Technology | Microswitch |
| Terminal type | Quick Connect |
