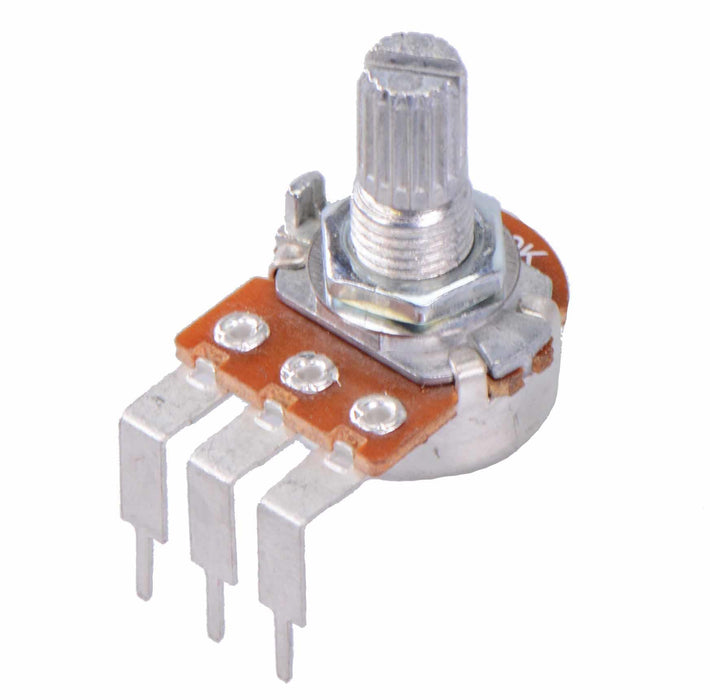

100K Linear 16mm Right Angle Splined Potentiometer

SKU 482478

MPN: 482478

Out of stock
Sold out
Original price £0.49 - Original price £0.49
Original price
£0.49 Inc VAT
£0.49 - £0.49
Current price £0.49 Inc VAT
100K linear carbon track 16mm potentiometer featuring a splined 6mm shaft suitable for horizontal PCB mounting.

  • Linear taper
  • Standard 16mm metal body
  • Right angle PCB contacts
  • 20% tolerance
  • Panel cut-out: 7mm
  • 5mm terminal pitch
  • 15mm shaft length
  • Specification
    Back order lead time 45 Days
    Dimensions 17mm Diameter
    Maximum voltage 200V
    Mounting hole diameter 7mm
    Mounting type PCB
    Operating temperature -10°C to +70°C
    Pitch 5mm
    Power rating 0.125W
    Resistance 100KΩ
    Shaft diameter 6mm
    Taper Linear
    Termination type Pin
    Tolerance ±20%
    Total rotation 300°
