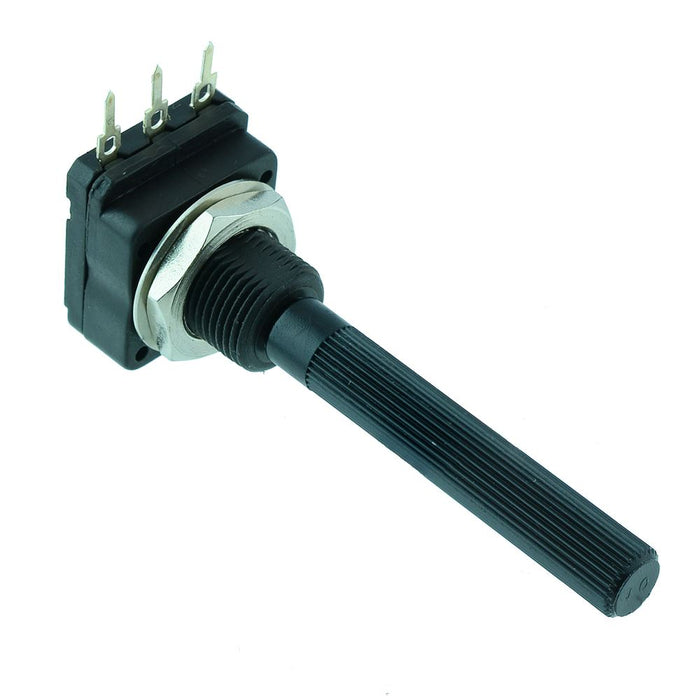

100K Linear Mono PC16 Potentiometer Piher
by Piher
SKU 552342
MPN: 6PMI-100K
Availability:
16 in stock
Original price
£1.78
-
Original price
£1.78
Original price
£1.78
£2.02
£2.02
-
£2.02
Current price
£2.02
Enclosed 100K linear mono potentiometer featuring a 6mm diameter shaft and self-extinguishing plastic case, suitable for PCB applications.
6mm diameter splined shaft 31.5mm shaft length ±20% tolerance 300° mechanical rotation Carbon resistive element Dust proof enclosure Self extinguishable material UL94V-0 Piher PC16 series
Specification
| Back Order Lead Time | 5 Days |
| Maximum Voltage | 250VDC |
| Mounting Hole Diameter | 10mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.2W |
| Resistance | 100KΩ |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
