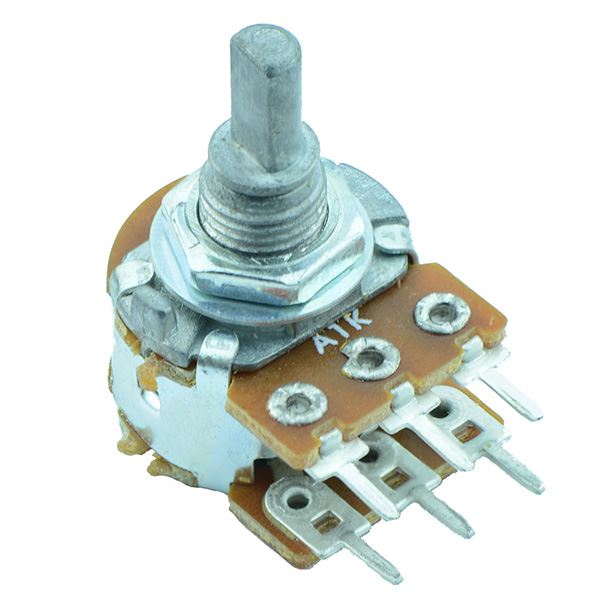

100K Logarithmic Stereo 16mm Potentiometer D Shaft
SKU 551771
MPN: 551771
Availability:
473 in stock
Original price
£0.57
-
Original price
£0.57
Original price
£0.57
Inc VAT
£0.57
-
£0.57
Current price
£0.57
Inc VAT
Stereo 16mm potentiometers with a logarithmic taper and D type shaft suitable for PCB mounting.
100k logarithmic taper Standard 16mm body diameter PCB contacts 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
Back order lead time | 30 Days |
Dimensions | 17mm Diameter |
Maximum voltage | 150V |
Mounting hole diameter | 7mm |
Mounting type | Panel Mount |
Operating temperature | -25°C to +70°C |
Pitch | 5mm |
Power rating | 0.063W |
Resistance | 100KΩ |
Shaft diameter | 4.5mm |
Taper | Linear |
Termination type | Pin |
Tolerance | ±20% |
Total rotation | 300° |
