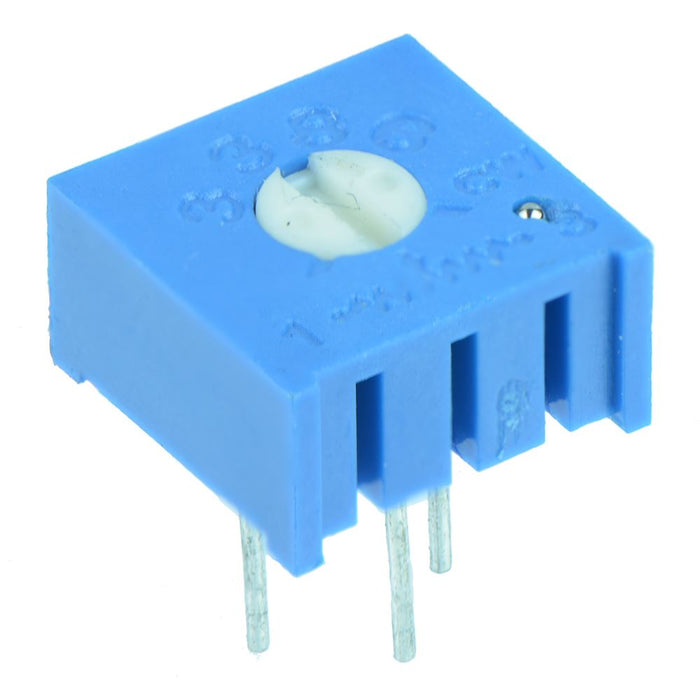

100k Single Turn Cermet Potentiometer 3/8"
SKU 133080
MPN: 133080
Availability:
707 in stock
Original price
£0.32
-
Original price
£0.32
Original price
£0.32
£0.32
£0.32
-
£0.32
Current price
£0.32
Enclosed single turn cermet potentiometers with a 10% resistance tolerance and 3/8" body size, commonly used for trimming resistor values.
Resistance: 100k Power rating: 0.5W PCB moulded standoffs Pitch 2.5mm Sealed design
Specification
| Back Order Lead Time | 30 Days |
| MOQ | 5 |
| Mounting Type | PCB |
| Operating Temperature | -55°C to +125°C |
| Pitch | 2.5mm |
| Power Rating | 0.5W |
| Resistance | 100KΩ |
| Termination Type | Pin |
| Tolerance | ±10% |
| Total Rotation | 280° |
