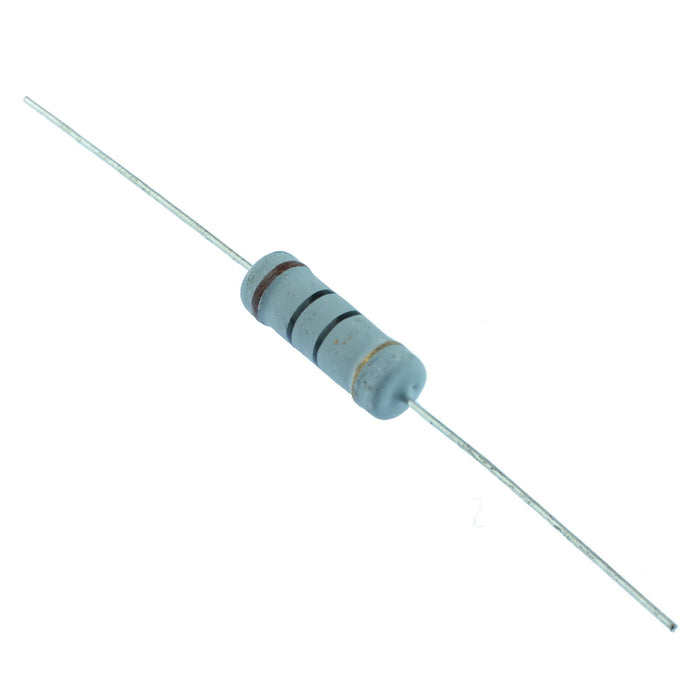

100R Metal Oxide 3W Resistor 5%
SKU 347003
MPN:
Availability:
1470 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
£0.12
-
£0.12
Current price
£0.12
3W metal oxide resistors with a 5% tolerance housed in a non-flammable compact package.
Stable and reliable performance Non-flammable coating Excellent thermal and overload stability Lead dimensions: 28 x 1mm Body dimensions: 17.5 x 6.5mm
Specification
Back Order Lead Time | 30 Days |
Body Dimensions | 17.5 x 6.5mm (Length x Diameter) |
Lead Diameter | 1mm |
Maximum Operating Voltage | 500V |
MOQ | 10 |
mpn | 347003 |
Operating Temperature | -55°C to +125°C |
Packaging | Cut Tape |
Power Rating | 3W |
Resistance | 100Ω |
Temperature Coefficient | ±350ppm/°C |
Termination | Axial |
Tolerance | ±5% |
