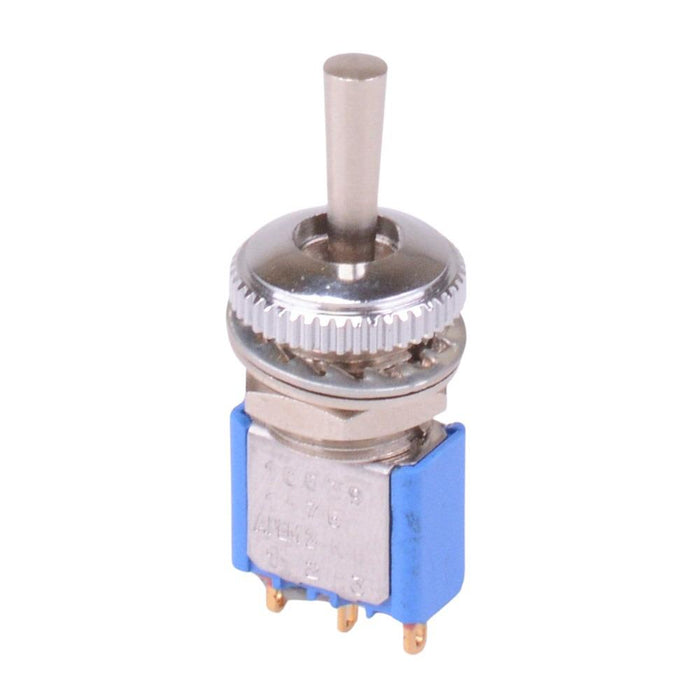

106391175 APEM Professional On-Off-On 10mm Toggle Switch SPDT
by APEM
SKU 489761
MPN: 106391175
Availability:
Out of stock
Sold out
Original price
£10.21
-
Original price
£10.21
Original price
£10.21
£10.21
£10.21
-
£10.21
Current price
£10.21
The 106391175 is a professional toggle switch featuring a 10mm threaded bushing and On-Off-On SPDT contacts, from the APEM 10600 series of switches. The switch is CECC approved and features solder terminals making it suitable for a wide range of demanding applications.
SPDT contacts On-Off-On operation 10mm threaded bush Rating: 3A 24VDC Panel cut-out: 10.2mm Max panel thickness: 4mm Gold plated silver terminals APEM 10600 series
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 24VDC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 10.2mm |
| Panel Thickness | 4mm |
| Product Series | 10600 |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
