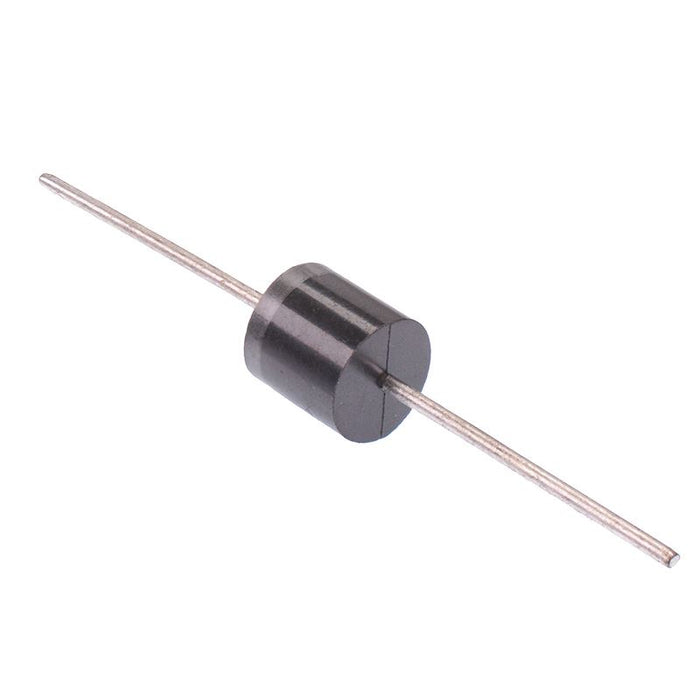

10A1 Rectifier Diode 10A 100V
SKU 483922
MPN: 483922
Availability:
120 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
Inc VAT
£0.18
-
£0.18
Current price
£0.18
Inc VAT
10A1 rectifier diode featuring fast switching times and 100V repetitive peark reverse voltage suitable for general applications where a high current is required.
Low reverse leakage High forward surge current capability Axial leads 100V maximum repetitive peak reverse voltage 10A maximum average forward output rectified current 500A peak forward surge current
Specification
| Average rectified current | 10A |
| Back order lead time | 40 Days |
| Body dimensions | 8.6 x 8.6mm (Length x Diameter) |
| Lead dimensions | 25.4 x 1.3mm (Length x Diameter) |
| Maximum dc blocking voltage | 100V |
| Maximum forward voltage | 1V |
| Maximum rms voltage | 70V |
| Moq | 5 |
| Mounting style | Through Hole |
| Operating temperature | -65°C to 175°C |
| Package | R-6 |
| Packaging | Tape |
| Peak reverse voltage | 100V |
| Peak surge current | 400A |
