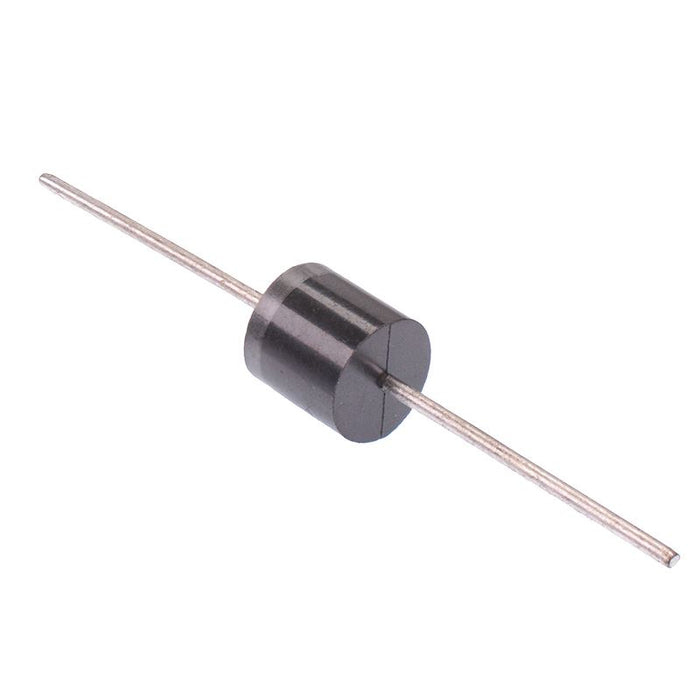

10A10 Rectifier Diode 10A 1000V
SKU 402041
MPN: 10A10
Availability:
Out of stock
Sold out
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
Inc VAT
£0.19
-
£0.19
Current price
£0.19
Inc VAT
10A axial rectifier diode with fast switching times suitable for general applications where a high current is required.
Low reverse leakage High forward surge current capability Axial leads 1000V maximum repetitive peak reverse voltage 10A maximum average forward output rectified current 500A peak forward surge current
Specification
| Average rectified current | 10A |
| Back order lead time | 40 Days |
| Body dimensions | 9.1 x 9.1mm (Length x Diameter) |
| Lead dimensions | 25.4 x 1.3mm (Length x Diameter) |
| Maximum dc blocking voltage | 1000V |
| Maximum forward voltage | 1V |
| Maximum rms voltage | 700V |
| Moq | 5 |
| Mounting style | Through Hole |
| Operating temperature | -65°C to 175°C |
| Package | R-6 |
| Packaging | Tape |
| Peak reverse voltage | 1000V |
| Peak surge current | 500A |
