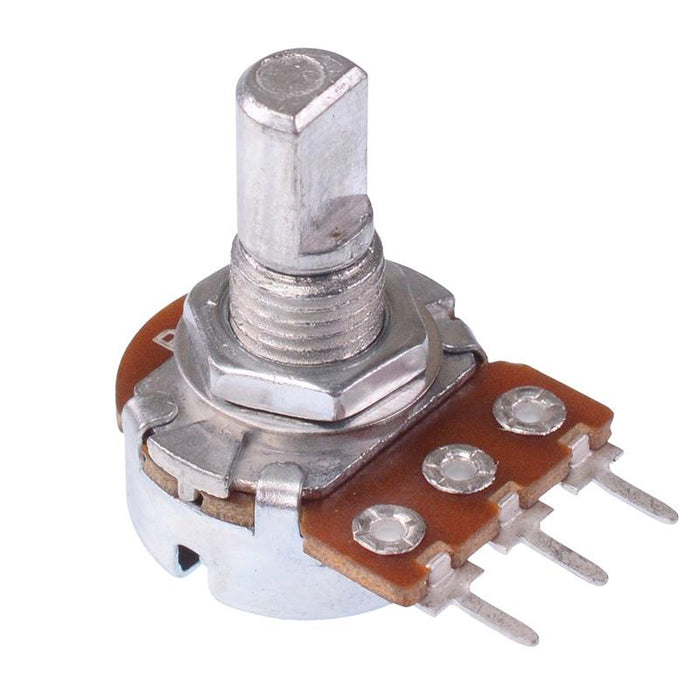

10K 16mm Linear Splined Potentiometer D Shaft

SKU 486675

MPN: 486675

Availability:
30 in stock, ready to be shipped
Original price £0.80 - Original price £0.80
Original price
£0.80 Inc VAT
£0.80 - £0.80
Current price £0.80 Inc VAT
10K linear 16mm potentiometer featuring a 6mm D shaft and pin terminals, suitable for PCB mounting.

  • 10K linear
  • 6mm diameter D shaft
  • Standard 16mm diameter size
  • 20% tolerance
  • Panel cut-out: 7mm
  • 5mm pitch
  • 15mm shaft length
  • Power: 125mW
  • Specification
    Maximum voltage 200V
    Mounting hole diameter 10mm
    Mounting type Panel Mount
    Operating temperature -25°C to +70°C
    Pitch 5mm
    Power rating 0.125W
    Resistance 10KΩ
    Shaft diameter 6mm
    Taper Linear
    Termination type Pin
    Tolerance ±20%
    Total rotation 300°
