10mm Prewired Hall Effect Proximity Sensor Switch M12 - S1456
by Comus
SKU 552591
MPN: S1456
Availability:
Out of stock
Sold out
Original price
£33.58
-
Original price
£33.58
Original price
£33.58
Inc VAT
£33.58
-
£33.58
Current price
£33.58
Inc VAT

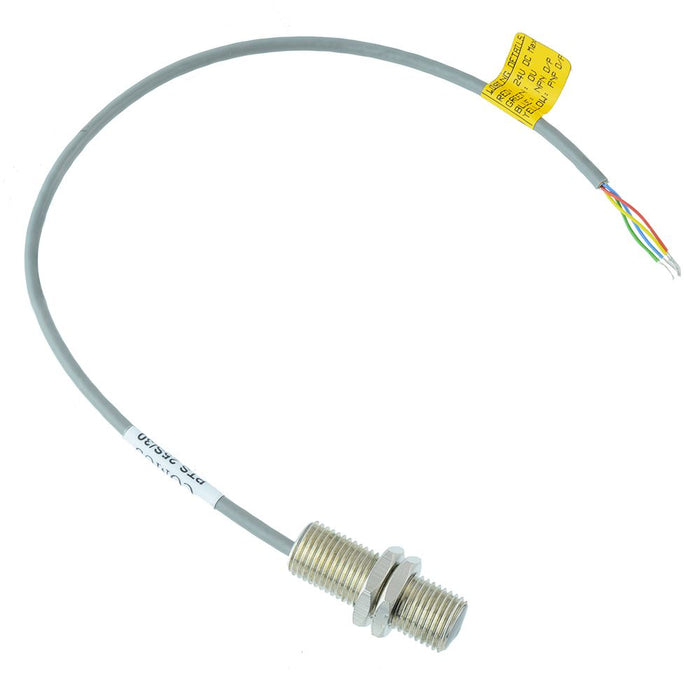

The S1456 is a hall effect proximity sensor featuring a PTSM magnet, normally closed contact and LED indicator.
PNP + NPN output Normally closed contact Magnet activated bounce free operation Nickel plated brass case M12 thread LED indication Supply voltage: 4.5-24VDC Maximum ON current: 25mA Output type: open collector Output current: 250mA Output loading: 4.7K Ohms Sensing distance: 10mm min
Note: When power is applied the red indication LED will glow dimly to indicate power is at the device. When a magnet is present i.e. on target the LED will illuminate at full brightness.
Note: When power is applied the red indication LED will glow dimly to indicate power is at the device. When a magnet is present i.e. on target the LED will illuminate at full brightness.
Specification
| Back order lead time | 180 Days |
| Material | Nickel Plated Brass |
| Operating temperature | -30°C to +70°C |
| Output current | 250mA |
| Output type | Open Collector |
| Supply voltage | 10-20VDC |
