10pcs SPST-NO Reed Switch 250mA 160V 6-16AT - RI-03AAA

by Comus
SKU 552495

MPN: RI-03H

Availability:
15 in stock
Original price £4.78 - Original price £4.78
Original price
£4.78
£4.78 - £4.78
Current price £4.78

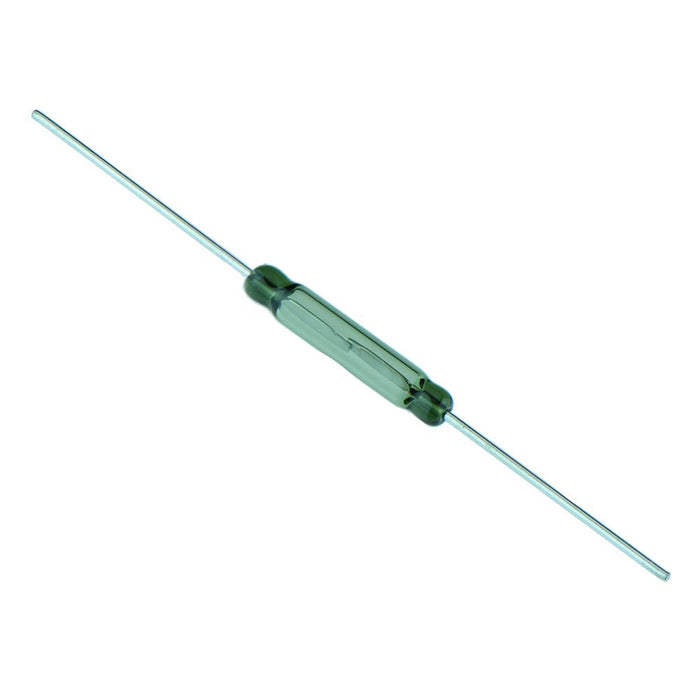

The RI-03AAA micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Pack of 10 switches
  • Ideal for general purpose reed relays and sensors
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Maximum switching power: 5W
  • Maximum switching voltage: 160VDC, 110VAC
  • Maximum switching current: 250mA
  • Operating range: 6-16AT
  • Specification
    Back Order Lead Time 180 Days
    Bounce Time 0.05ms
    Carry Current 1A
    Contact Configuration SPST-NO
    Diameter 2.54mm
    Length 14.5mm
    Material Rhodium
    Maximum Switching Capacity 5W
    Maximum Switching Current 0.25A
    Maximum Switching Voltage 160VDC, 110VAC
    Operating Temperature -55°C to +125°C
    Pull In Sensitivity 6-16AT
    Release Time 70µs
