10pcs SPST-NO Reed Switch 2A (35-50AT) - GC3717

by Comus
SKU 552484

MPN: GC3717L

27 in stock
Original price £9.81 - Original price £9.81
Original price
£9.81 Inc VAT
£9.81 - £9.81
Current price £9.81 Inc VAT

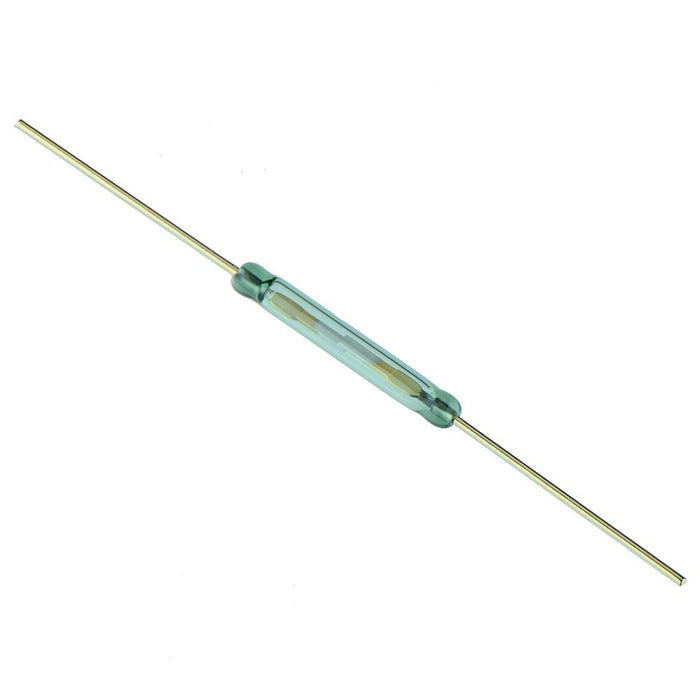

GC3717L is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Pack of 10 switches
  • Normally open contacts
  • Maximum switching voltage: 400V AC/DC
  • Maximum switching current: 2A
  • Maximum switching power: 40VA
  • Pull-in sensitivity: 35-50AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.5ms
    Carry current 3A
    Contact configuration SPST-NO
    Diameter 2.6mm
    Drop out sensitivity 15AT Min
    Length 19mm
    Material Rhodium
    Maximum switching capacity 40W/VA
    Maximum switching current 2A
    Maximum switching voltage 400VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 35-50AT
    Release time 0.1ms
