10pcs SPST-NO Reed Switch (30-40AT) - GC2722M

by Comus
SKU 552482

MPN: GC2722M

Availability:
9 in stock
Original price £6.95 - Original price £6.95
Original price
£6.95 Inc VAT
£6.95 - £6.95
Current price £6.95 Inc VAT

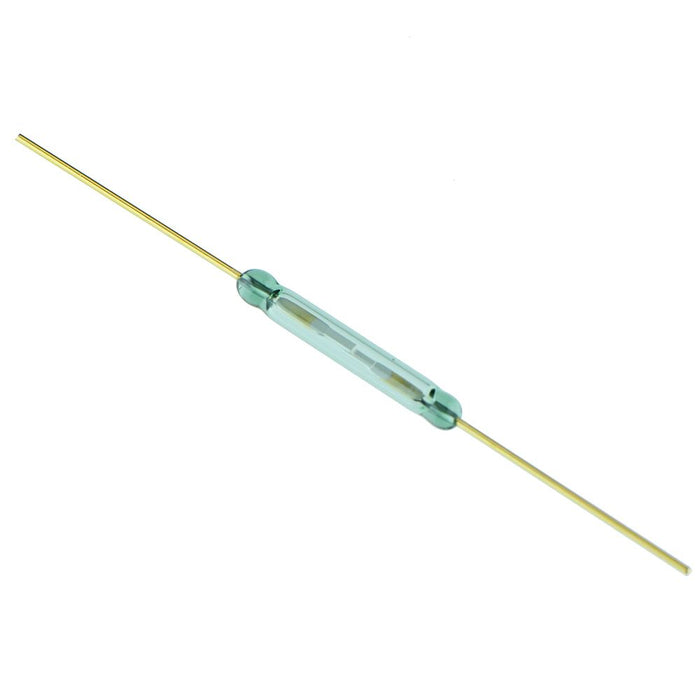

GC2722M is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Pack of 10 switches
  • Normally open contacts
  • Maximum switching voltage: 230V AC/DC
  • Maximum switching current: 1A
  • Maximum switching power: 12VA
  • Pull-in sensitivity: 30-40AT
  • Specification
    Back Order Lead Time 180 Days
    Bounce Time 0.5ms
    Carry Current 2A
    Contact Configuration SPST-NO
    Diameter 2.6mm
    Drop Out Sensitivity 5AT Min
    Length 19mm
    Material Rhodium
    Maximum Switching Capacity 12VA
    Maximum Switching Current 1A
    Maximum Switching Voltage 230VAC/DC
    Operating Temperature -40°C to +125°C
    Pull In Sensitivity 30-40AT
    Release Time 0.1ms
