10pcs SPST-NO Reed Switch 3A (80-95AT) - GC1513
by Comus
SKU 552480
MPN: GC1513L
Availability:
Only 4 left!
Original price
£35.06
-
Original price
£35.06
Original price
£35.06
£35.06
£35.06
-
£35.06
Current price
£35.06

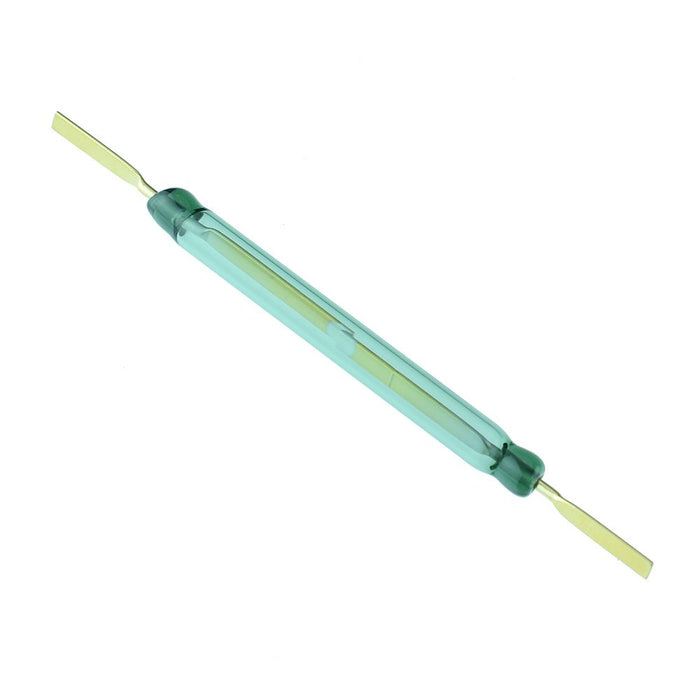

GC1513 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.
Pack of 10 switches Normally open contacts Maximum switching voltage: 1500V AC/DC Maximum switching current: 3A Maximum switching power: 120VA Pull-in sensitivity: 80-95AT
Specification
| Back Order Lead Time | 7 |
| Bounce Time | 3.5ms |
| Carry Current | 5A |
| Contact Configuration | SPST-NO |
| Diameter | 5.4mm |
| Drop Out Sensitivity | 30AT Min |
| Length | 52mm |
| Material | Rhodium |
| Maximum Switching Capacity | 120VA |
| Maximum Switching Current | 3A |
| Maximum Switching Voltage | 1500VAC/DC |
| MOQ | 1 |
| Operating Temperature | -40°C to +125°C |
| Pull In Sensitivity | 80-95AT |
| Release Time | 0.5ms |
