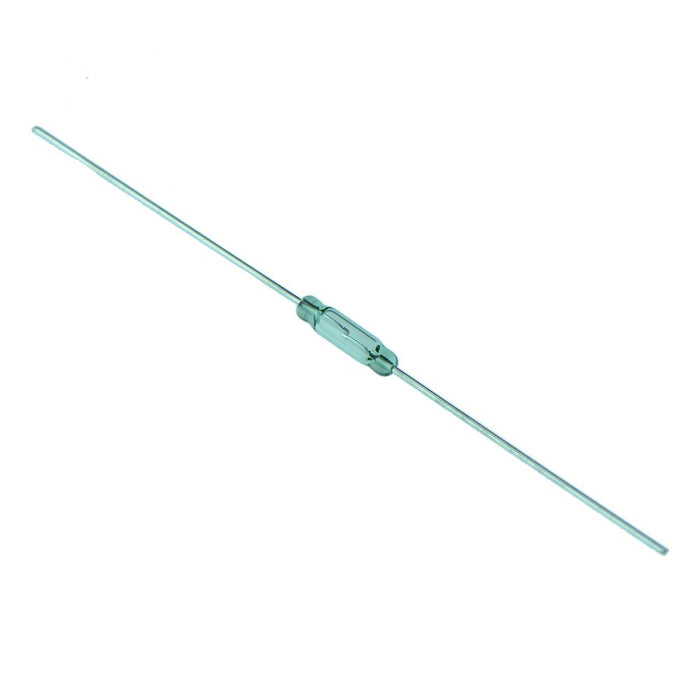

10pcs SPST-NO Reed Switch 500mA 170VDC 5-10AT - RI-70H

by Comus
SKU 552509

MPN: RI-70H

Availability:
6 in stock
Original price £7.27 - Original price £7.27
Original price
£7.27 Inc VAT
£7.27 - £7.27
Current price £7.27 Inc VAT
The RI-70 ultra-miniature dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Pack of 10 switches
  • Ideal for ATE switching
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Excellent life expectancy and reliability
  • Maximum switching power: 10W
  • Maximum switching voltage: 170VDC, 120VAC
  • Maximum switching current: 500mA
  • Operating range: 5-10AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.035ms
    Carry current 0.5A
    Contact configuration SPST-NO
    Diameter 1.8mm
    Length 7mm
    Material Rhodium
    Maximum switching capacity 10W
    Maximum switching current 0.5A
    Maximum switching voltage 170VDC, 120VAC
    Operating temperature -55°C to +125°C
    Pull in sensitivity 5-10AT
    Release time 0.035ms
