10pcs SPST-NO Reed Switch 500mA 170VDC - RI-70C
by Comus
SKU 552512
MPN: RI-70M
Back Order Availability: 180
Availability:
40 in stock, ready to be shipped
Original price
£7.06
-
Original price
£7.06
Original price
£7.06
Inc VAT
£7.06
-
£7.06
Current price
£7.06
Inc VAT

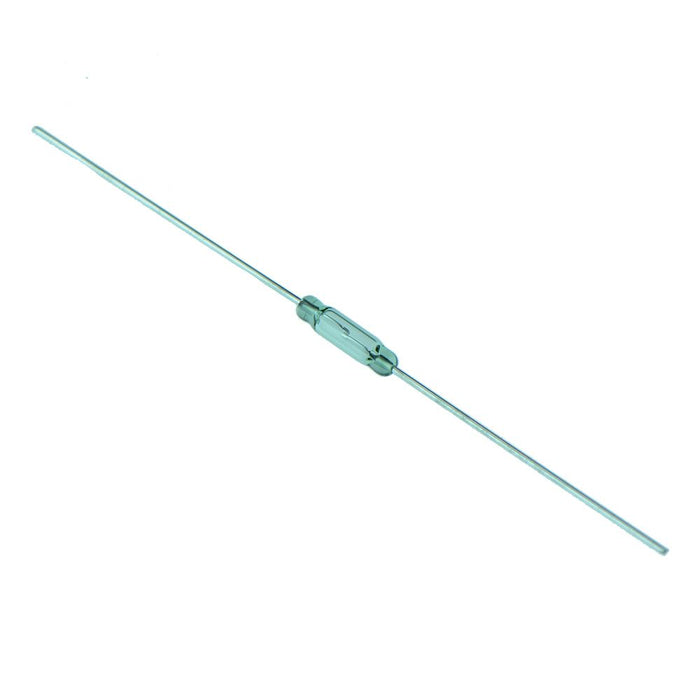

The RI-70C ultra-miniature dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.
Pack of 10 switches Ideal for ATE switching Contact layers: ruthenium on gold Superior glass-to-metal seal and blade alignment Excellent life expectancy and reliability Maximum switching power: 10W Maximum switching voltage: 170VDC, 120VAC Maximum switching current: 500mA Operating range: 10-15AT
Specification
Back order lead time | 180 |
Bounce time | 0.035ms |
Carry current | 0.5A |
Contact configuration | SPST-NO |
Diameter | 1.8mm |
Length | 7mm |
Material | Rhodium |
Maximum switching capacity | 10W |
Maximum switching current | 0.5A |
Maximum switching voltage | 170VDC, 120VAC |
Operating temperature | -55°C to +125°C |
Pull in sensitivity | 10-15AT |
Release time | 0.035ms |
