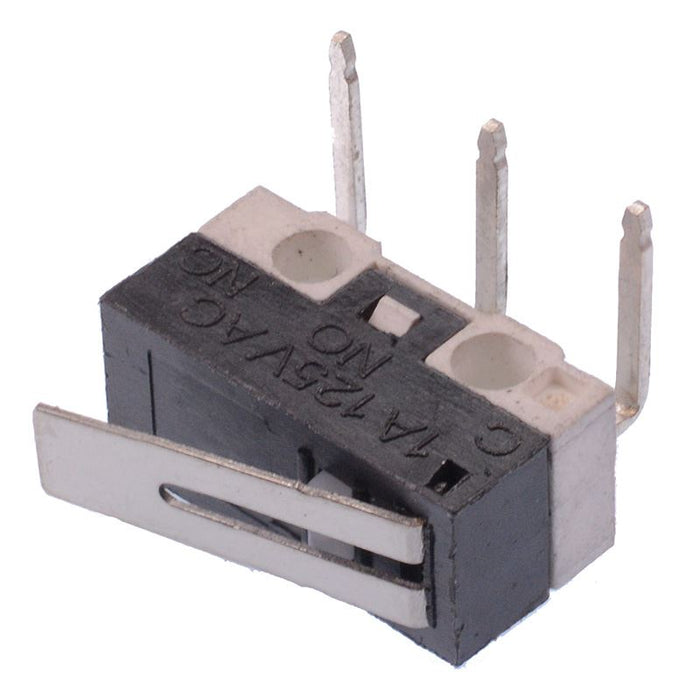

11mm Lever Subminiature Horizontal PCB Microswitch SPDT 3A
SKU 483512
MPN: 483512
Availability:
928 in stock
Original price
£0.34
-
Original price
£0.34
Original price
£0.34
Inc VAT
£0.34
-
£0.34
Current price
£0.34
Inc VAT
Subminiature microswitch featuring a 11mm lever actuator housed in a compact package capable of switching up to 3A. The switch features left hand PCB terminals and is suitable for a wide range of applications.
11mm lever actuator Rating: 3A 250VAC NO / NC contacts Left hand PCB terminals Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
Specification
| Back order lead time | 45 Days |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 50,000 Cycles |
| Mounting style | PCB |
| Number of positions | 2 |
| Operating force | 100gf |
| Operating temperature | -25°C to +85°C |
| Terminal type | Through Hole |
| Voltage rating | 250VAC |
