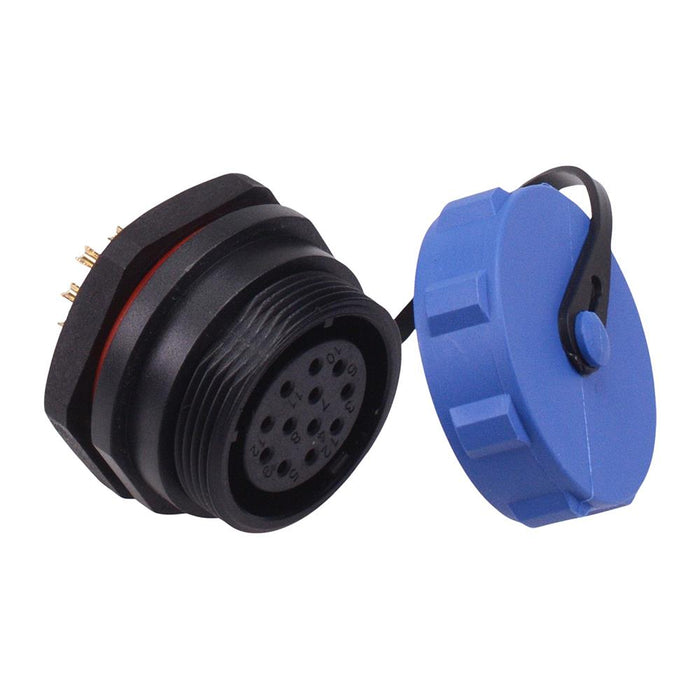

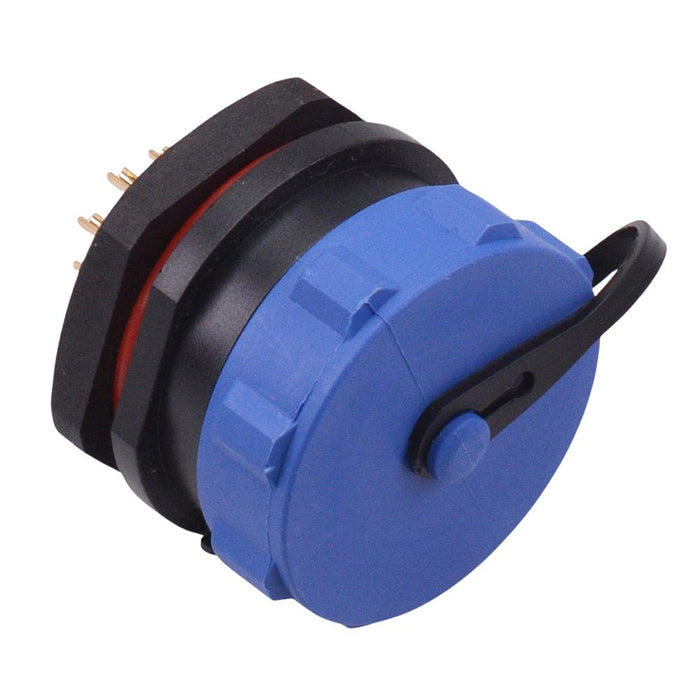

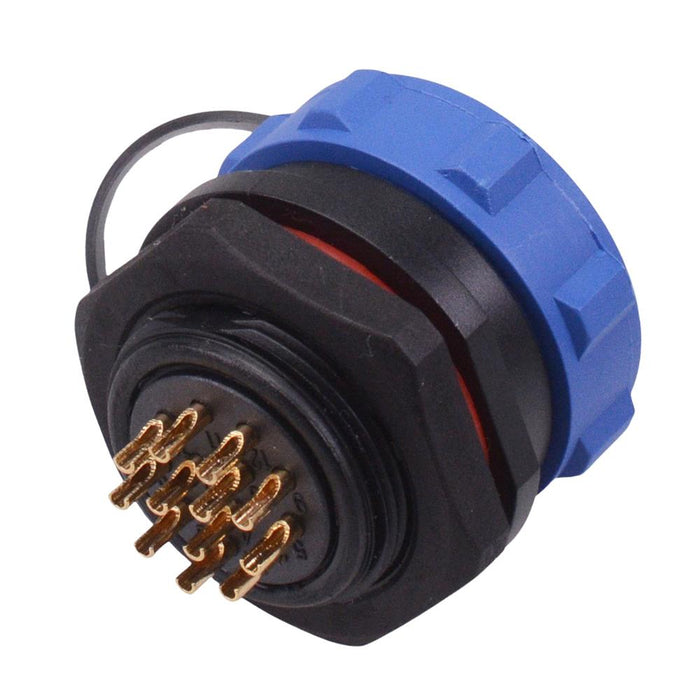

12 Pin Waterproof W21 Female Socket Panel Mount Connector IP68
SKU 491068
MPN: SE-W21A2-12
Availability:
46 in stock
Original price
£4.11
-
Original price
£4.11
Original price
£4.11
£4.31
£4.31
-
£4.31
Current price
£4.31
12 way 21mm female circular socket featuring IP68 protection rating and solder terminals. The connector features a compact design, suitable for panel mount applications requiring a waterproof rugged connector.
Protection level: IP68 Rating: 5A 400V Panel cut-out: 21.0mm Solder termination Wire size: ≤ 18AWG Rated for 500 mating cycles Dimensions: 26.0 x 29.0mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 5A |
| Gender | Female |
| Housing Material | PPO, PA66 |
| MOQ | 1 |
| Mounting Type | Panel |
| Number of Ways | 12 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 21mm |
| Panel Thickness | 3mm Max |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W21 |
| Voltage Rating | 400V |
| Wire Range | ≤18AWG |
