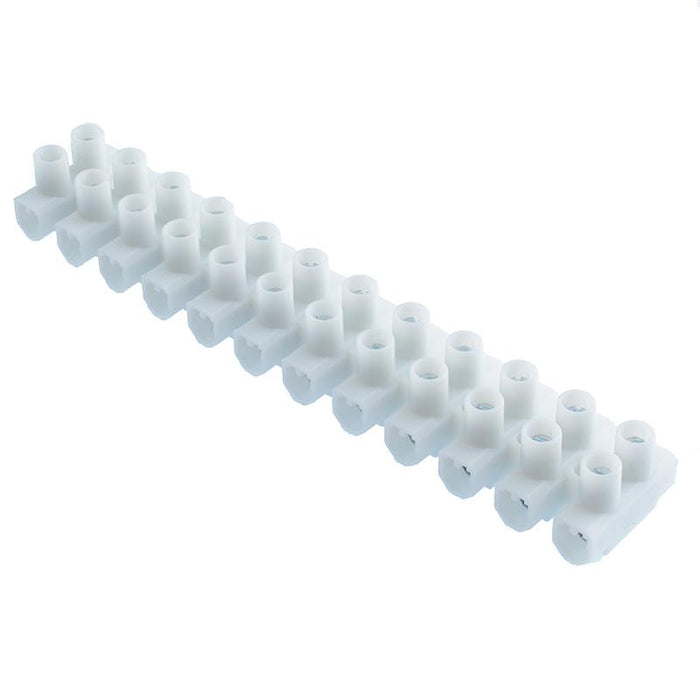

12-Pole Kwik Snap Terminal Block 32A 450V
SKU 552211
MPN: 552211
Availability:
479 in stock
Original price
£1.02
-
Original price
£1.02
Original price
£1.02
£1.02
£1.02
-
£1.02
Current price
£1.02
32A 12 pole pillar terminal block featuring Kwik Snap technology allowing the poles to be easily separated without the need for tools. The terminal strips are manufactured from UL94V-2 polypropylene with steel inserts, providing the user a reliable and low cost terminal block assembly solution.
Pitch: 10mm Maximum conductor size: 6mm² Rating: 32A 450V Dimensions: 14 x 20 x 116.5mm (H x W x L) Zinc plated steel inserts VDE approved and rated to T85-110 Complies with IEC/EN60998-1,60998-2-1
Specification
| Back Order Lead Time | 150 |
| Colour | White |
| Current Rating | 32A |
| Housing Material | Polypropylene |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 12 |
| Pitch | 10mm |
| Termination Method | Screw |
| Voltage Rating | 450VAC |
| Wire Range | 6mm² max |
