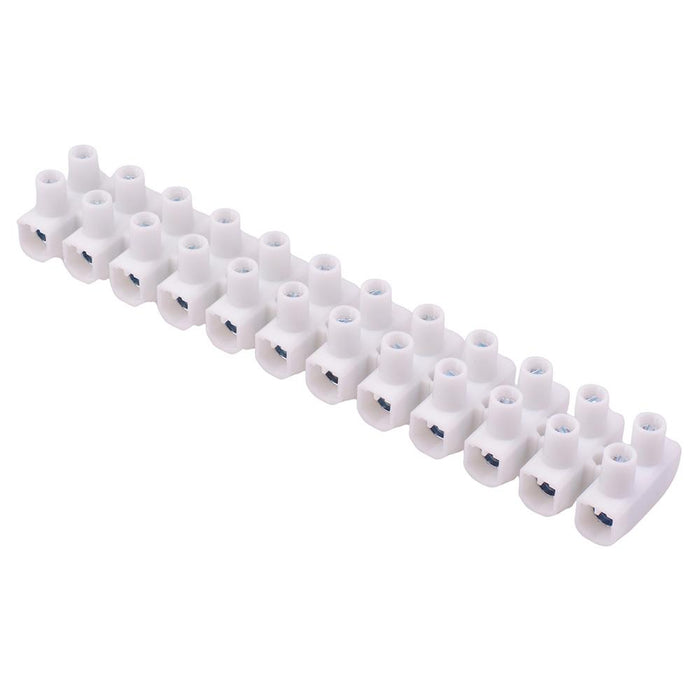

12-Pole Kwik Snap Terminal Strip Block 76A 750V
SKU 488559
MPN: SE16-12S/90P0
Availability:
200 in stock
Original price
£1.25
-
Original price
£1.25
Original price
£1.25
£1.25
£1.25
-
£1.25
Current price
£1.25
76A 12 pole pillar terminal block featuring Kwik Snap technology allowing the poles to be easily separated without the need for tools. The terminal strips are manufactured from UL94V-2 polypropylene with steel inserts, providing the user a reliable and low cost terminal block assembly solution.
Pitch: 14.5mm Conductor size: 6-16mm² Rating: 76A 750V Dimensions: 20.9 x 27.7 x 169.5mm (H x W x L) Zinc plated steel inserts VDE approved and rated to T85-110 Complies with IEC/EN60998-1,60998-2-1
Specification
| Back Order Lead Time | 150 |
| Colour | Grey |
| Current Rating | 76A |
| Housing Material | Polypropylene |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 12 |
| Pitch | 14.5mm |
| Termination Method | Screw |
| Voltage Rating | 750VAC |
| Wire Range | 6-16mm² |
