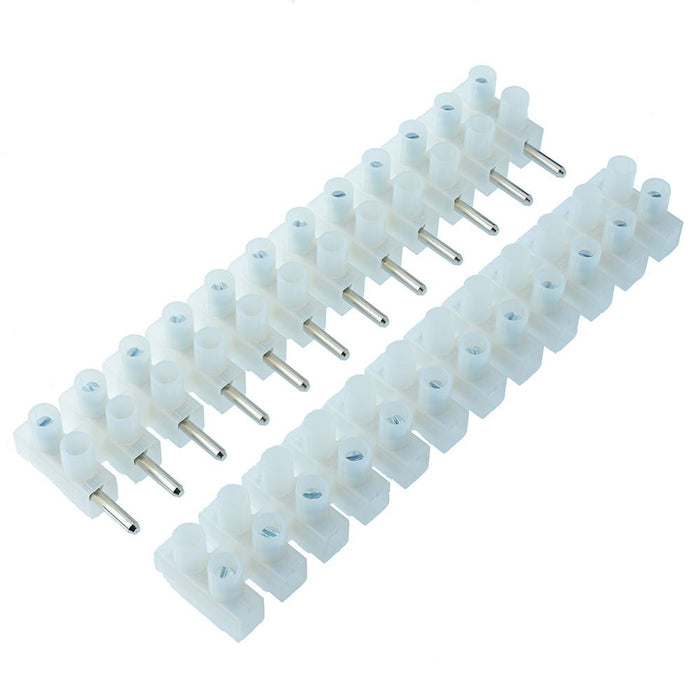

12-Pole Plug & Socket Pluggable Terminal Strip Connector 6A
SKU 552213
MPN: 552213
Availability:
351 in stock
Original price
£2.90
-
Original price
£2.90
Original price
£2.90
£2.90
£2.90
-
£2.90
Current price
£2.90
12 pole plug and socket terminal strip with a 6A current rating providing easy connection / disconnection. The terminal blocks are manufactured from polyamide and can be easily separated to provide the required number of poles. Suitable for a wide range of applications including lighting.
Stainless steel spring Maximum conductor size: 2.5mm² Pitch: 10mm Rating: 6A 250V Dimensions: 15.1 x 18.6 x 116.15mm (H x W x L) VDE approved
Specification
| Back Order Lead Time | 150 |
| Colour | White |
| Current Rating | 6A |
| Housing Material | Polyamide |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 12 |
| Pitch | 10mm |
| Termination Method | Screw |
| Voltage Rating | 250VAC |
| Wire Range | 2.5mm² max |
