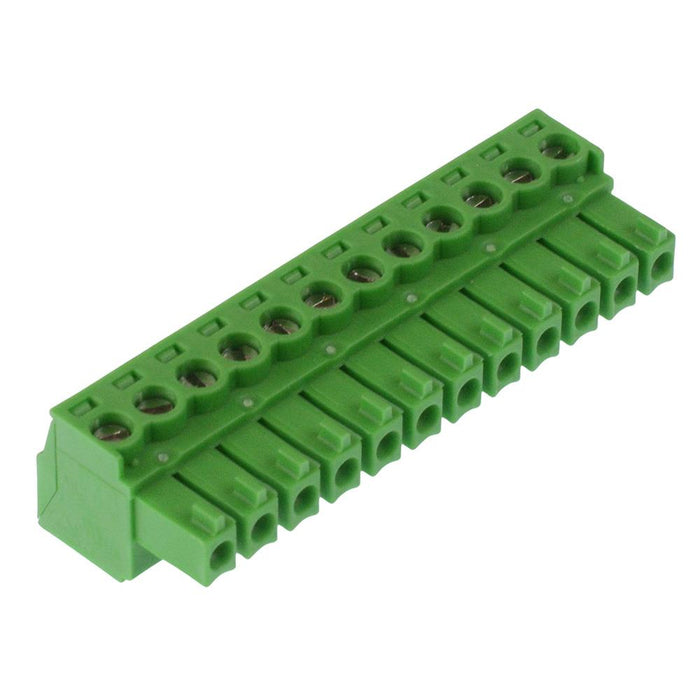

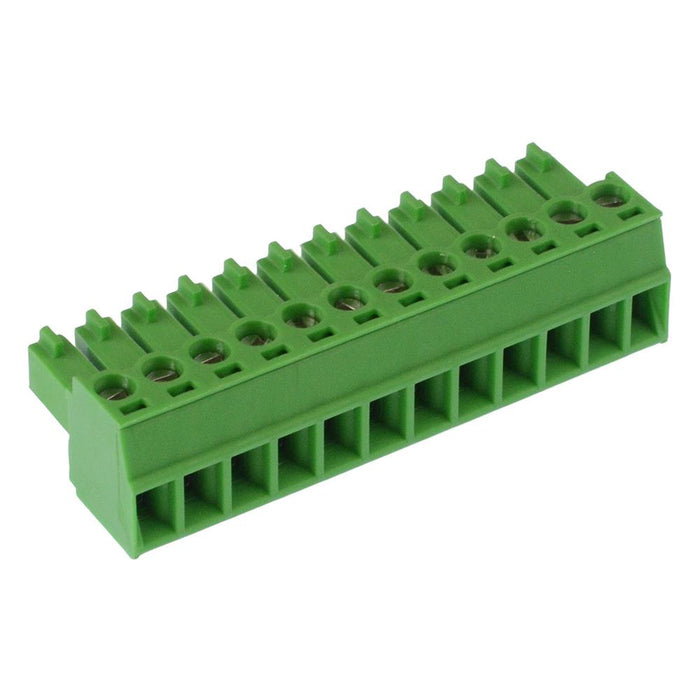

12-Way 3.81mm Right Angle Pluggable Terminal Block 8A 300V
by PTR HARTMANN
SKU 488187
MPN: AKZ1550/12-3,81-GREEN
Availability:
22 in stock
Original price
£1.54
-
Original price
£1.54
Original price
£1.54
£1.54
-
£1.54
Current price
£1.54
12 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 3.81mm pitch and parallel wire entry. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.
12 pole 3.81mm pitch Right angle Material: PA66 Rating: 8A 300V Wire size: 28-16AWG
Specification
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Material | Brass |
| Current Rating | 8A |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 12 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.81mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 28-16AWG |
