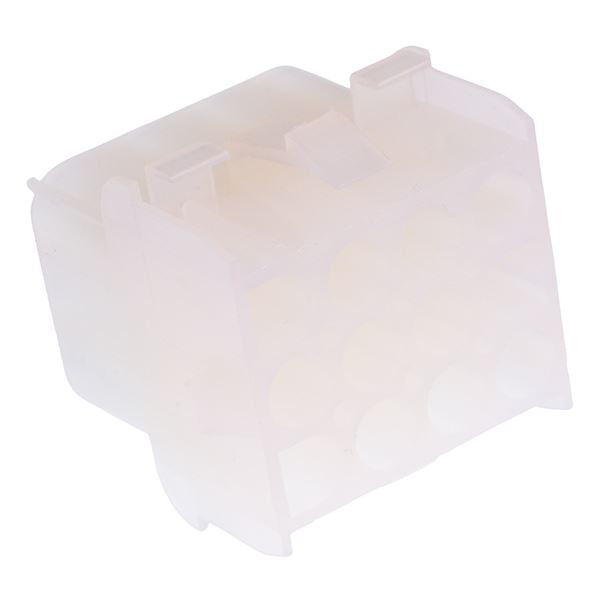

12 Way 6.35mm Female Mate N Lock Connector Housing
SKU 484720
MPN: 484720
Availability:
260 in stock
Original price
£1.38
-
Original price
£1.38
Original price
£1.38
Inc VAT
£1.38
-
£1.38
Current price
£1.38
Inc VAT
Triple row 12 way female mate n lock housing featuring 6.35mm pitch suitable for mating with a male housing. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex MLX connectors.
6.35mm pitch Nylon 66 housing Rated Current: 10A Rated Voltage: 300V Wire range: 14-20AWG
Specification
| Back order lead time | 45 Days |
| Contact material | Tin Plated Brass |
| Current rating | 10A |
| Housing material | PA66 |
| Mounting type | Cable Mount |
| Number of ways | 12 |
| Operating temperature | -25°C to +85°C |
| Pitch | 6.35mm |
| Termination method | Crimp |
| Voltage rating | 300VAC |
| Wire range | 20-14AWG |
