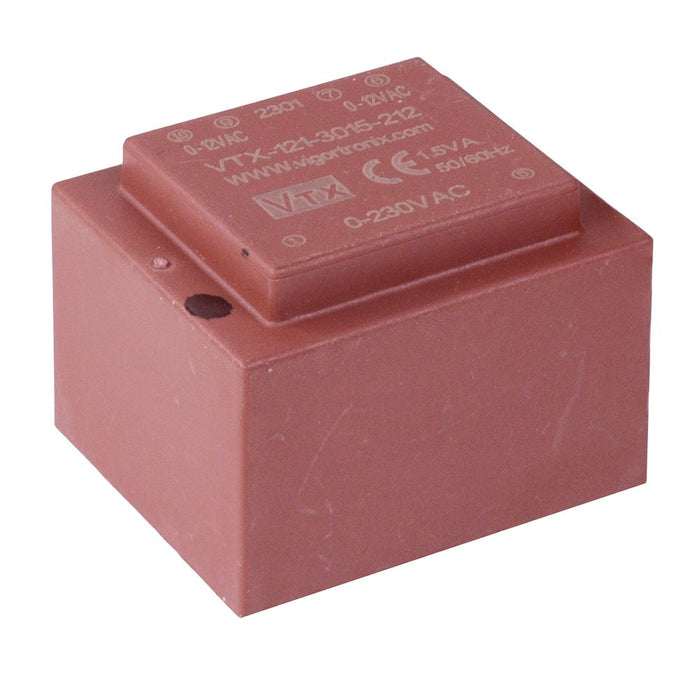

12V 1.5VA Encapsulated PCB Transformer 230V VTX-121-3015-212
by Vigortronix
SKU 486975
MPN: VTX-121-3015-212
Availability:
Only 5 left!
Original price
£2.47
-
Original price
£2.47
Original price
£2.47
Inc VAT
£2.47
-
£2.47
Current price
£2.47
Inc VAT
12V high performance encapsulated PCB transformer manufactured by Vigortronix, featuring a single primary winding and 230V input voltage. The transformer features a 1.5VA power rating and is suitable for applications in rugged environments due to their construction and encapsulation.
230V input voltage 2 x 12V output voltage 1.5VA power rating 62mA output current Inherently Short-circuit proof Materials: UL94-V0 Manufactured and tested in accordance to EN61558, EN60950, CE UL, VDE and CE approved Dimensions: 32.6 x 27.6 x 24mm (length x width x height)
Specification
| Back order lead time | 5 Days |
| Dielectric strength | 4200Vrms |
| Height | 24mm |
| Length | 32.6mm |
| Maximum ambient temperature | 70°C |
| Output current | 0.062A |
| Power | 1.5VA |
| Primary voltage | 230V |
| Secondary voltage | 2 x 12V |
| Weight | 80g |
| Width | 27.6mm |
