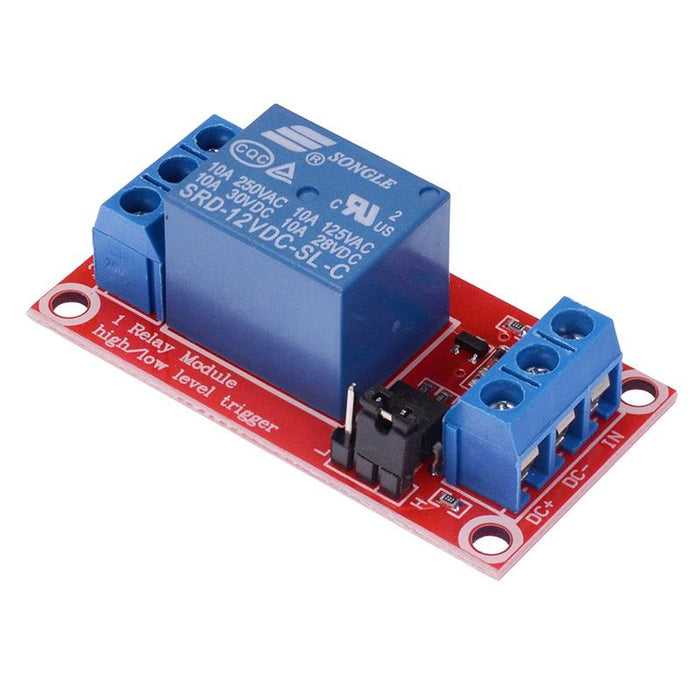

12V 1 Channel Relay Board Module Active Low - Terminal Blocks

SKU 485763

MPN: 485763

Availability:
187 in stock
Original price £1.49 - Original price £1.49
Original price
£1.49 Inc VAT
£1.49 - £1.49
Current price £1.49 Inc VAT
1 channel active low relay board with 12V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1.5V to switch the inputs ON. The modules can be controlled directly by a microcontroller and are suitable for 12V applications.

  • 1 Channel
  • Maximum switching voltage: 250VAC / 30VDC
  • Maximum switching current: 10A
  • Module operating voltage: 12V
  • Each relay features an LED indicator
  • Dimensions: 53 x 18 x 19mm (Length x Width x Height)
  • Specification
    Back order lead time 30 Days
    Coil voltage 12VDC
    Number of channels 1
    Terminal type Terminal Block
