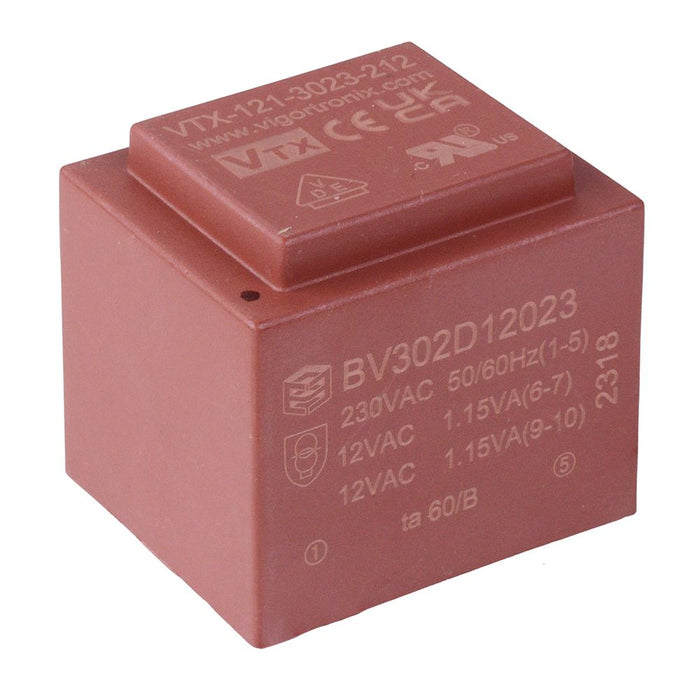

12V 2.3VA Encapsulated PCB Transformer 230V VTX-121-3023-212

SKU 486976

MPN: VTX-121-3023-212

6 in stock
Original price £2.96 - Original price £2.96
Original price
£2.96 Inc VAT
£2.96 - £2.96
Current price £2.96 Inc VAT
12V high performance encapsulated PCB transformer manufactured by Vigortronix, featuring a single primary winding and 230V input voltage. The transformer features a 2.3VA power rating and is suitable for applications in rugged environments due to their construction and encapsulation.

  • 230V input voltage
  • 2 x 12V output voltage
  • 2.3VA power rating
  • 95mA output current
  • Inherently Short-circuit proof
  • Materials: UL94-V0
  • Manufactured and tested in accordance to EN61558, EN60950, CE
  • UL, VDE and CE approved
  • Dimensions: 32.6 x 27.6 x 27mm (length x width x height)
  • Specification
    Back order lead time 5 Days
    Dielectric strength 4200Vrms
    Height 27mm
    Length 32.6mm
    Maximum ambient temperature 70°C
    Output current 0.095A
    Power 2.3VA
    Primary voltage 230V
    Secondary voltage 2 x 12V
    Weight 100g
    Width 27.6mm
