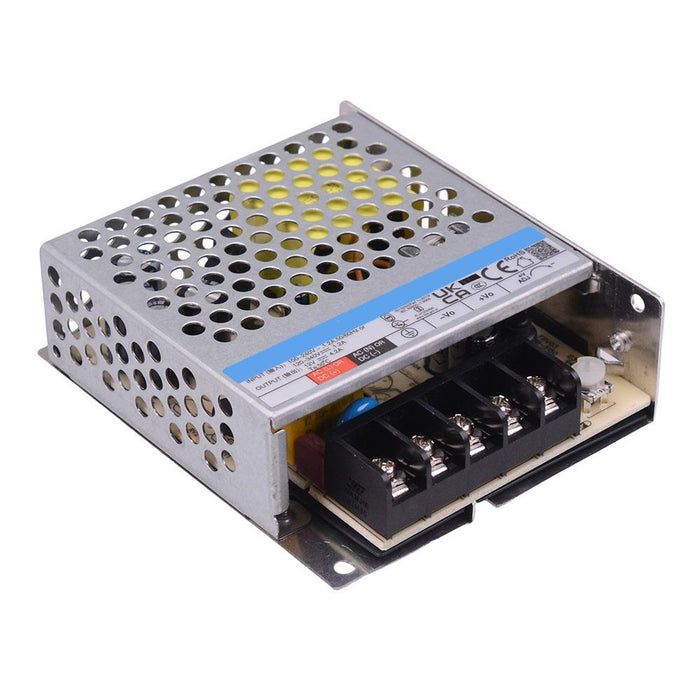

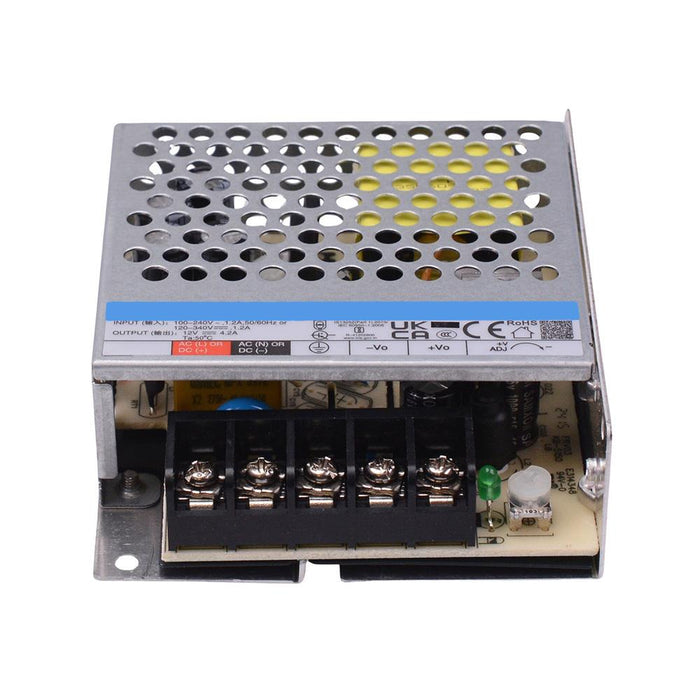

12V 4.2A Enclosed Switching Power Supply 50W

SKU 490389

MPN: SE50-20B12

Availability:
30 in stock
Original price £13.29 - Original price £13.29
Original price
£13.29
£13.29 - £13.29
Current price £13.29
12V enclosed industrial AC-DC power supply featuring a universal input and high efficiency. The power supply features low no load power consumption and excellent reliability. The power supply meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943,IEC/EN61558 standards widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications.

  • Output voltage: 12V
  • Output current: 4.2A
  • Power: 50.4W
  • Adjustable output voltage range: 10.2-13.8V
  • Input voltage: 85-264VAC, 120-370VDC
  • Efficiency at 230VAC: 87%
  • Output short circuit, over-current, over-voltage protection
  • M3 screw terminals
  • Wire range: 22-12AWG
  • Dimensions: 99.0 x 82.0 x 30.0mm (length x width x height)
  • Specification
    Back Order Lead Time 120 Days
    Input Frequency 47-63Hz
    Input Voltage 85-264VAC, 120-370VDC
    Maximum Temperature 70°C
    MOQ 1
    Output Connector M3 Screw
    Output Current 4.2A
    Output Voltage 12VDC
    Over Current Protection Yes
    Over Voltage Protection Yes
    Power Rating 50W
    Short Circuit Protection Yes
