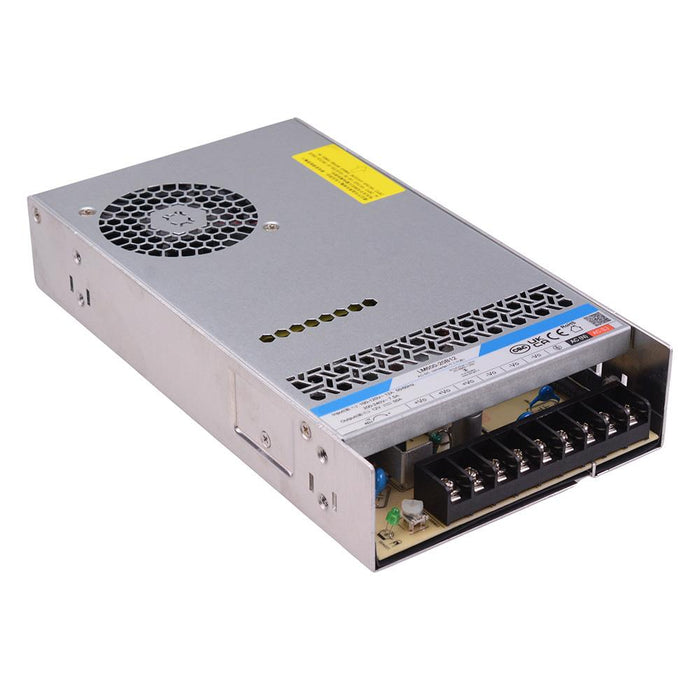

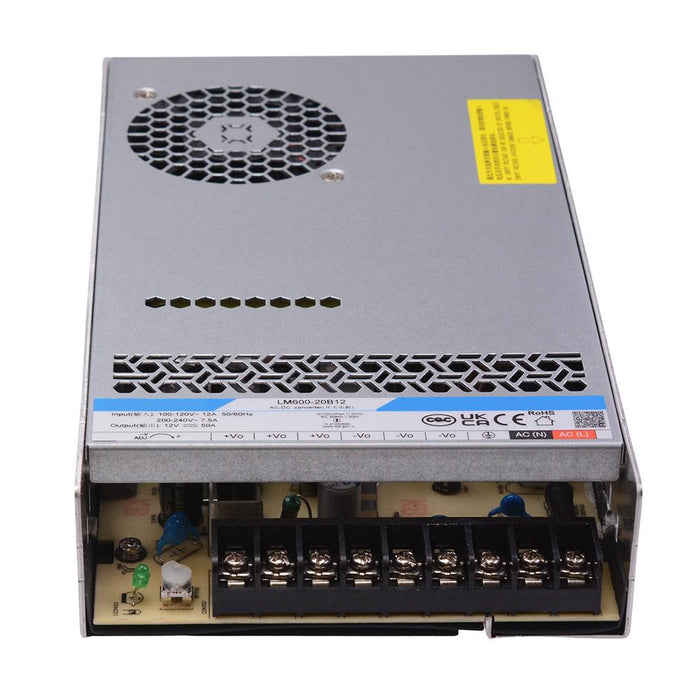

12V 50A Enclosed Switching Power Supply 600W
SKU 490401
MPN: SE600-20B12
Availability:
10 in stock
Original price
£61.58
-
Original price
£61.58
Original price
£61.58
£61.58
-
£61.58
Current price
£61.58
12V enclosed industrial AC-DC power supply featuring a universal input and high efficiency. The power supply features low no load power consumption and excellent reliability. The power supply meets UL/EN/BS EN/IEC62368, EN/IEC60335, EN61558, GB4943 standards widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications.
Output voltage: 12V Output current: 50A Power: 600W Adjustable output voltage range: 11.4-13.2V Input voltage: 90-132VAC, 180-264VAC, 255-370VDC Efficiency at 230VAC: 90% Output short circuit, over-current, over-voltage, over-temperature protection M4 screw terminals Wire range: 14-10AWG Dimensions: 225.0 x 124.0 x 41.0mm (length x width x height)
Specification
Back Order Lead Time | 120 Days |
Input Frequency | 47-63Hz |
Input Voltage | 90-132VAC, 180-264VAC, 255-370VDC |
Maximum Temperature | 70°C |
MOQ | 1 |
Output Connector | M4 Screw |
Output Current | 50A |
Output Voltage | 12VDC |
Over Current Protection | Yes |
Over Temperature Protection | Yes |
Over Voltage Protection | Yes |
Power Rating | 600W |
Short Circuit Protection | Yes |
