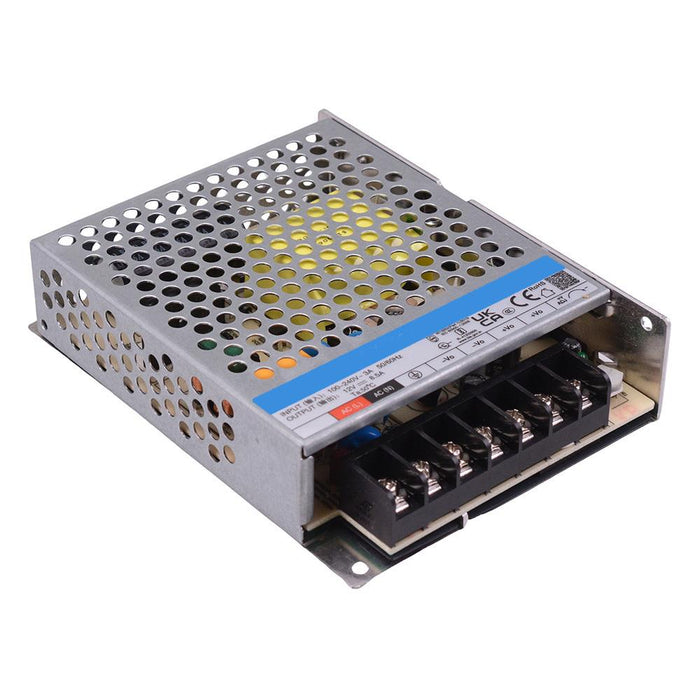

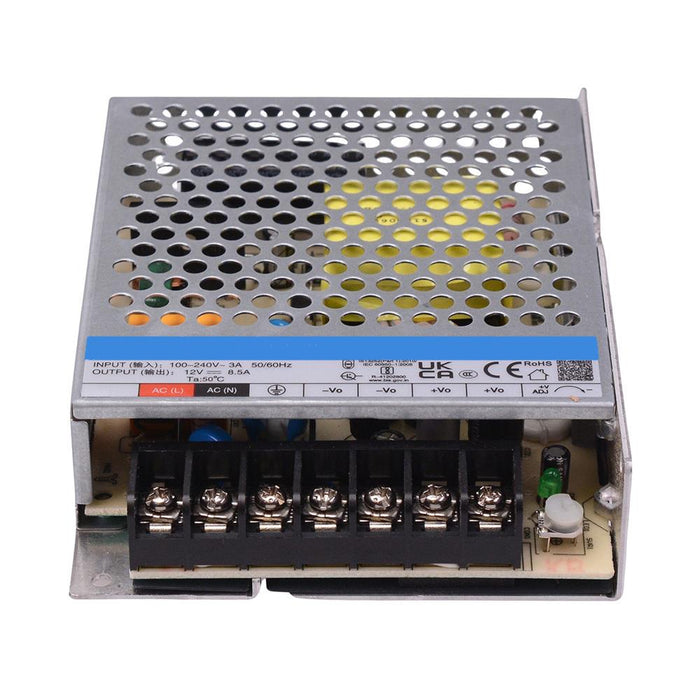

12V 8.5A Enclosed Switching Power Supply 100W
SKU 490393
MPN:
Availability:
20 in stock
Original price
£18.44
-
Original price
£18.44
Original price
£18.44
£18.44
-
£18.44
Current price
£18.44
12V enclosed industrial AC-DC power supply featuring a universal input and high efficiency. The power supply features low no load power consumption and excellent reliability. The power supply meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943,IEC/EN61558 standards widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications.
Output voltage: 12V Output current: 8.5A Power: 102W Adjustable output voltage range: 10.2-13.8V Input voltage: 85-264VAC, 120-370VDC Efficiency at 230VAC: 86.5% Output short circuit, over-current, over-voltage protection M3 screw terminals Wire range: 22-12AWG Dimensions: 129.0 x 97.0 x 30.0mm (length x width x height)
Specification
Back Order Lead Time | 120 Days |
Input Frequency | 47-63Hz |
Input Voltage | 85-264VAC, 120-370VDC |
Maximum Temperature | 70°C |
MOQ | 1 |
Output Connector | M3 Screw |
Output Current | 8.5A |
Output Voltage | 12VDC |
Over Current Protection | Yes |
Over Voltage Protection | Yes |
Power Rating | 100W |
Short Circuit Protection | Yes |
