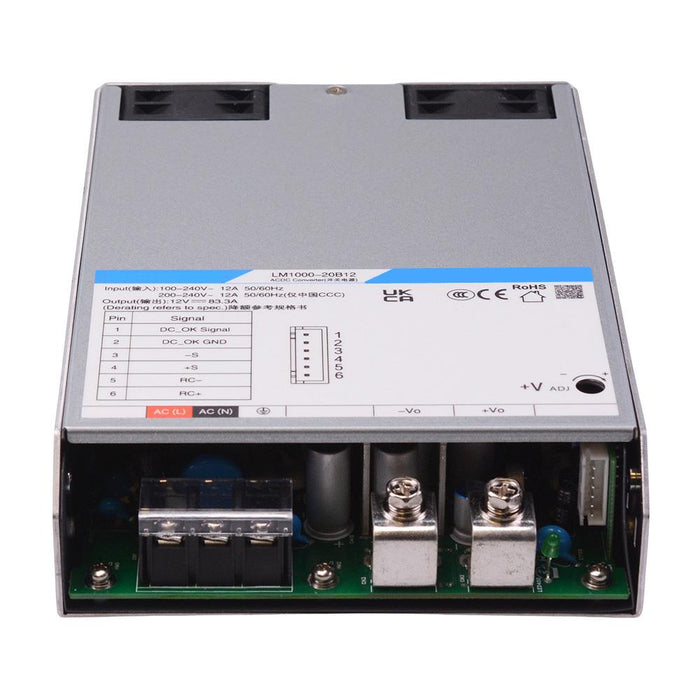

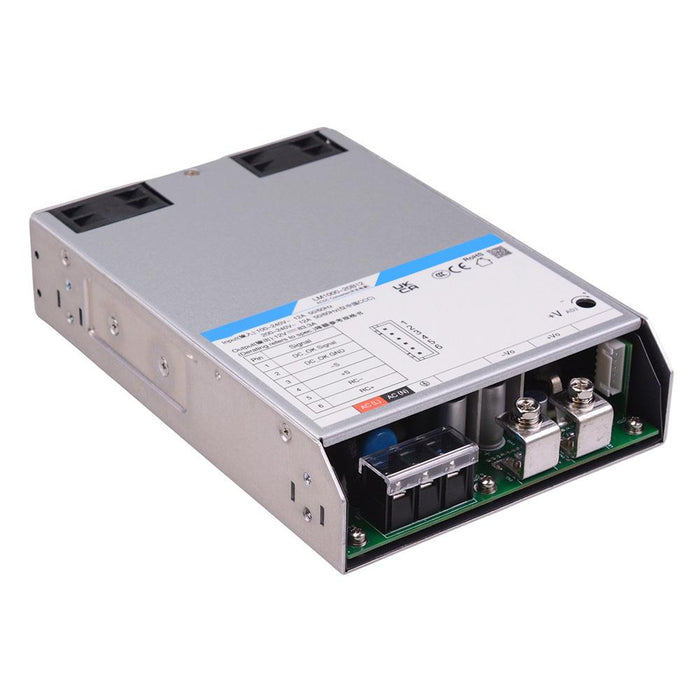

12V 83.3A Enclosed Switching Power Supply 1000W
SKU 490403
MPN: SE1000-20B12
Availability:
Only 2 left!
Original price
£166.03
-
Original price
£166.03
Original price
£166.03
£166.03
-
£166.03
Current price
£166.03
12V enclosed industrial AC-DC power supply featuring a universal input and high efficiency. The power supply features low no load power consumption and excellent reliability. The power supply meets UL/IEC/EN62368, GB4943 standards widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications.
Output voltage: 12V Output current: 83.3A Power: 999.6W Adjustable output voltage range: 11.4-13.2V Input voltage: 90-264VAC, 130-390VDC Efficiency at 230VAC: 90% Output short circuit, over-current, over-voltage, over-temperature protection Screw terminals Dimensions: 187.5 x 127.0 x 40.5mm (length x width x height)
Specification
Back Order Lead Time | 120 Days |
Input Frequency | 47-63Hz |
Input Voltage | 90-264VAC, 130-390VDC |
Maximum Temperature | 70°C |
MOQ | 1 |
Output Current | 83.3A |
Output Voltage | 12VDC |
Over Current Protection | Yes |
Over Temperature Protection | Yes |
Over Voltage Protection | Yes |
Power Rating | 1000W |
Short Circuit Protection | Yes |
