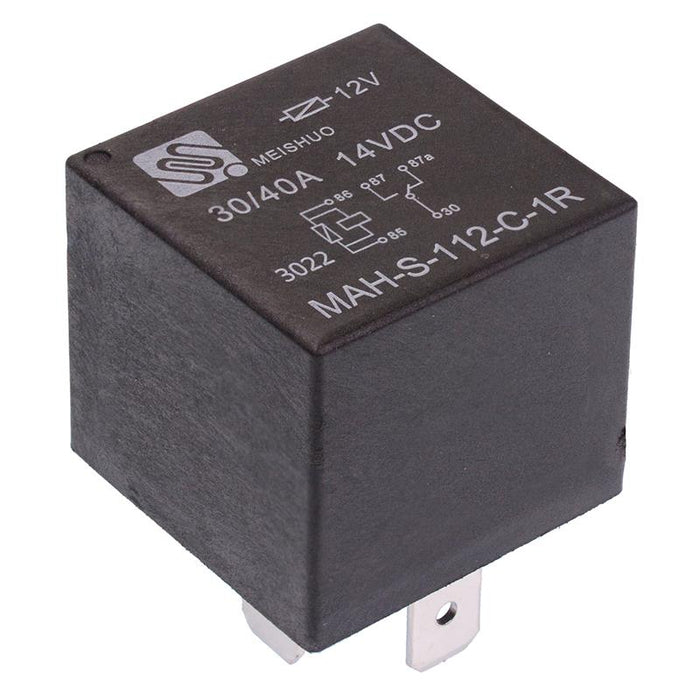

12V Automotive Changeover Relay Resistor 40A 5 Pin SPDT
by Meishuo
SKU 485803
MPN: MAH-S-112-C-1R
Availability:
7 in stock
Original price
£2.17
-
Original price
£2.17
Original price
£2.17
Inc VAT
£2.17
-
£2.17
Current price
£2.17
Inc VAT
12V automotive relay featuring SPDT contacts and a resistor across the coil protecting sensitive equipment against voltage spikes. The relay is sealed providing protection from dust and water, suitable for general purpose automotive applications.
Maximum switching current: 40A Coil voltage: 12VDC Coil power: 1.6W Sealed IP67 construction SPDT contacts Excellent shock and vibration resistance Wide temperature range Body dimensions: 28 x 28 x 25mm
Specification
| Ambient temperature | -40°C to +85°C |
| Back order lead time | 120 Days |
| Coil resistance | 90Ω |
| Coil voltage | 12VDC |
| Contact arrangement | SPDT |
| Maximum continuous voltage | 15.7VDC |
| Maximum switching current | 40A |
| Maximum switching voltage | 80VDC |
| Mounting type | Plug In |
| Number of contacts | 5 |
| Power consumption | 1.6W |
| Terminal type | Quick Connect |
